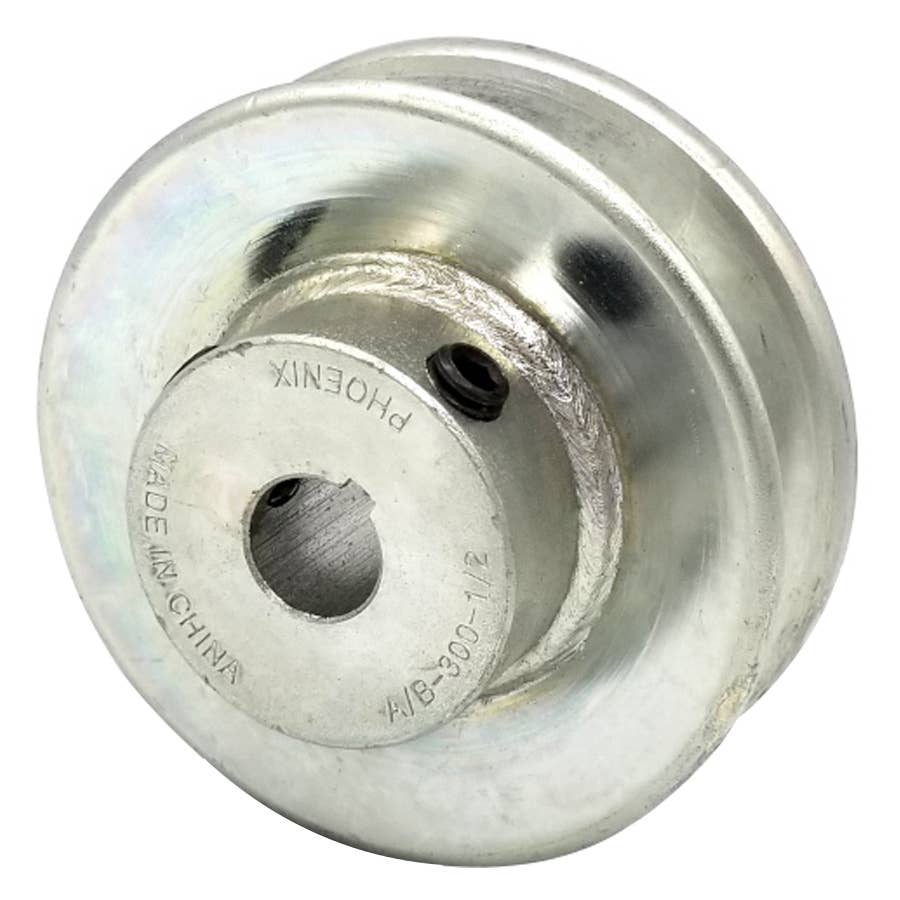

Phoenix ABH300 3'' V-Groove Drive Pulley
Sku
74753-P
Phoenix ABH300 3'' V-Groove Drive Pulley is for use as a general purpose pulley for power transmission such as compressors, industrial fans, lawnmowers, snowblowers and electrical motors. This pulley comes with 2 set screw holes. The heavy duty steel is designed to be more durable. Zinc-plated or Painted to prevent rust.
- Back Side Offset: 0.08"
- Belts That Fit: 4L/A|5L/B
- Finish: Zinc Plate Or Paint
- Front Side Offset: 0.92"
- Groove Angle: 34??
- Material: Steel
- Outside Diameter: 3"
- Overpin Diameter: 3.42"
- Pin Diameter: 0.5625"
- Stickout: 0.47"
- Through Bore: 1"
- Width: 0.9"
- Works with 4L/A|5L/B belts
- Heavy duty split steel Model: 230058
- Number of Set Screw Holes: 2 Model: 230012
- Number of Set Screw Holes: 1
Find In StorePhoenix ABH300 3'' V-Groove Drive Pulley is for use as a general purpose pulley for power transmission such as compressors, industrial fans, lawnmowers, snowblowers and electrical motors. This pulley comes with 2 set screw holes. The heavy duty steel is designed to be more durable. Zinc-plated or Painted to prevent rust.
