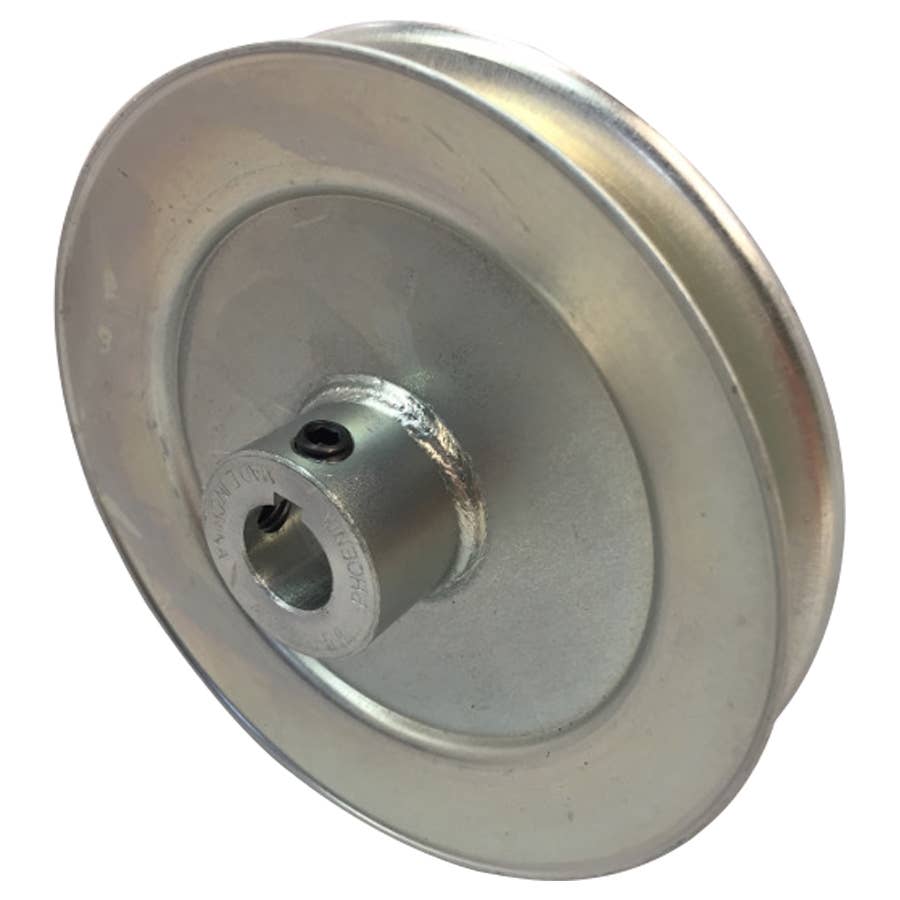

Phoenix ABH500 5'' V-Groove Drive Pulley
Sku
74786-P
Phoenix ABH500 5'' V-Groove Drive Pulley is for use as a general purpose pulley for power transmission such as compressors, industrial fans, lawnmowers, snowblowers and electrical motors. This pulley comes with 2 set screw holes. The heavy duty steel is designed to be more durable.
- Back Side Offset: 0.08"
- Belts That Fit: 4L/A|5L/B
- Finish: Zinc Plate Or Paint
- Front Side Offset: 0.92"
- Groove Angle: 34??
- Material: Steel
- Material Thickness: 0.156"
- Number of Set Screw Holes: 2
- Outside Diameter: 5"
- Overpin Diameter: 5.42"
- Pin Diameter: 0.5625"
- Stickout: 0.495"
- Through Bore: 1"
- Width: 0.85"
- Works with 4L/A|5L/B belts
Find In StorePhoenix ABH500 5'' V-Groove Drive Pulley is for use as a general purpose pulley for power transmission such as compressors, industrial fans, lawnmowers, snowblowers and electrical motors. This pulley comes with 2 set screw holes. The heavy duty steel is designed to be more durable.
