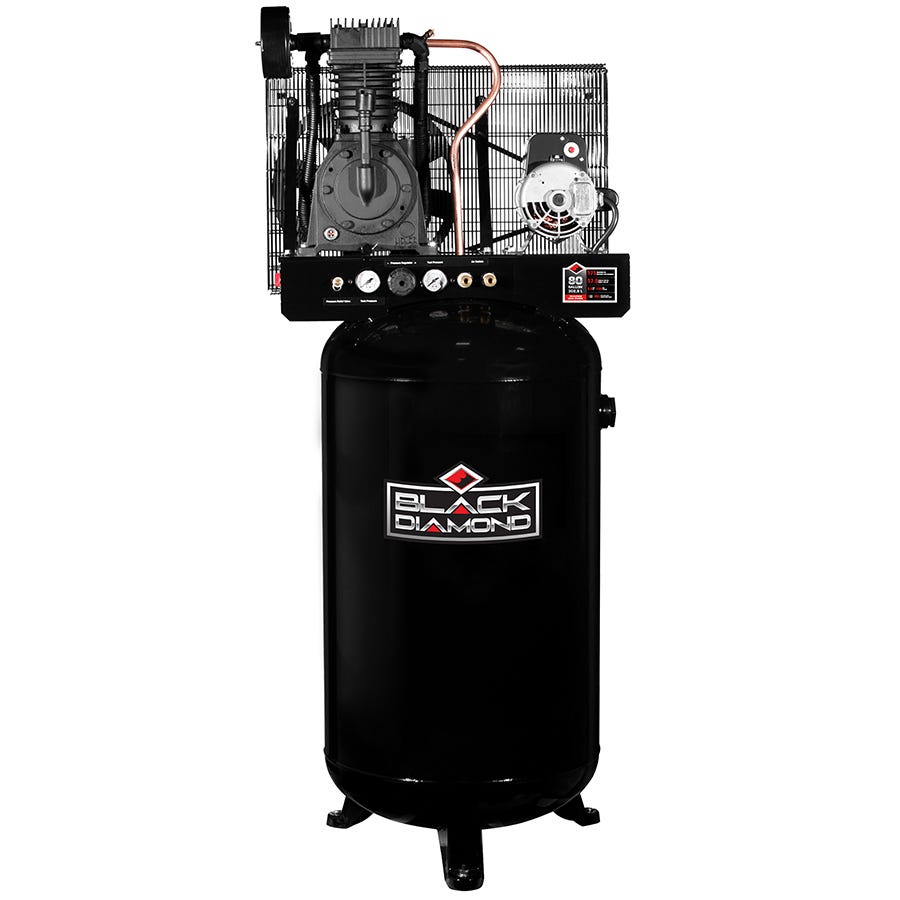

Black Diamond 5 HP 80 Gallon Two-Stage Air Compressor
- Two stage industrial cast iron pump
- Splash lube for complete lubrication
- Industrial grade ball bearings
- Precision bored cylinders
Find In StoreThis item is only available for curbside and in-store pickup at a North 40 Outfitters store. Please check the store availability tab to view inventory at your preferred North 40 Outfitters.
Black Diamond's industrial two stage performance delivers maximum SCFM @ 175 PSI; provides enough power to operate more than one air tool or device at one time. Featuring a patented design providing a cooler running pump with deep-groove directional cooling fins on the head, asymmetrical cooling gins on the cylinders, and large extended fins on the flywheel. A high efficiency finned copper intercooler reduces inter-stage air temperatures for maximum performance and increased valve life. Cast iron construction for dependable smooth operation. Includes an industrial style metal air intake filter/silencer with automotive style replaceable filter element. Comes pre-filled with 100% full synthetic non-detergent air compressor oil for optimum performance & life. This compressor is certified toUL1450 and CSA22.2 for sale in the U.S. and Canada.
Features:
- Two stage industrial cast iron pump
- Splash lube for complete lubrication of all working parts
- Industrial grade ball bearings
- Precision bored cylinders
- Automotive style connecting rods
- Patented piston design for improved compression efficiency
- Readily accessible oil fill with convenient 4" extension makes changing oil easier
- 16.5 cast iron balanced flywheel
- 80 gallon ASME vertical stationary tank with 3/4" air outlet port
- Equipped with an integrated control panel including tool & tank pressure gauges, regulator, and two quick connect air outlets. A pressure switch with on/off switch is also included on the unit
Specifications:
- Tank Size: 80 Gallon ASME
- Maximum Working Pressure: 175 PSI
- SCFM @ 100 PSI: 117.9
- SCFM @ 175 PSI: 17.0
- Voltage: 230 Volt
- Amps/Phase: 24 Amp/Single Phase
- Running HP: 5.0
- Certifications: UL & CSA
- Warranty: 2 Year Limited
