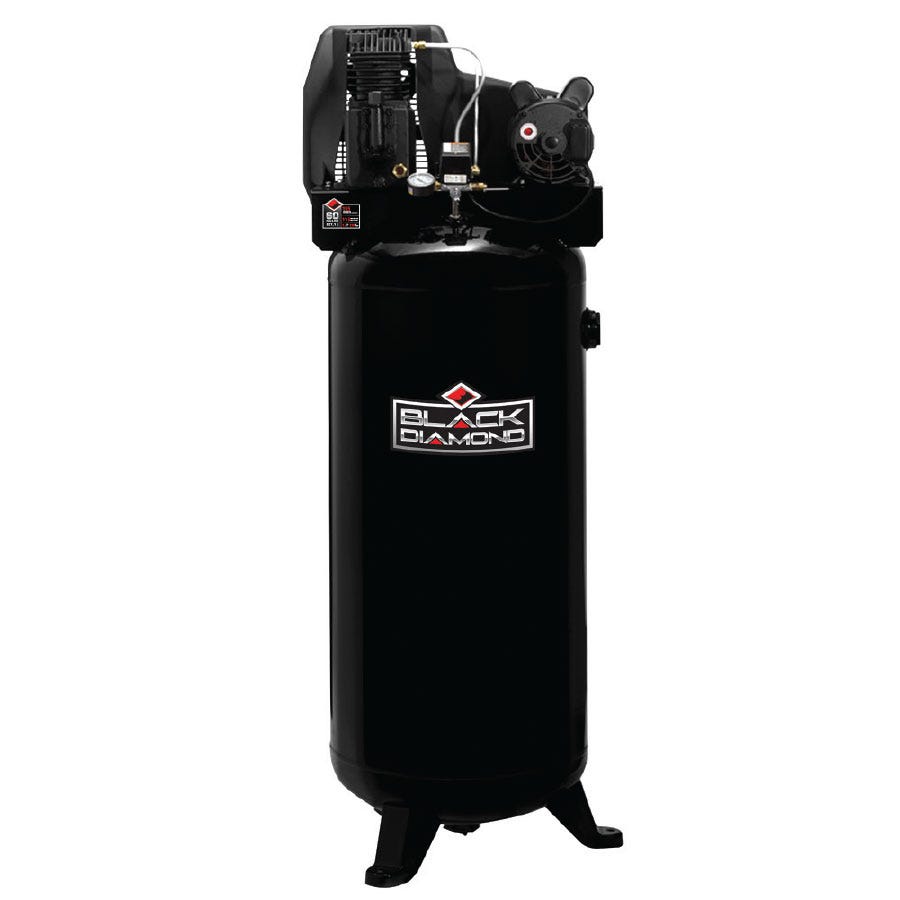

Black Diamond Vertical Compressor - 60 gal
- Cast iron twin cylinder single stage oil lubricated pump
- Stainless steel reed valves
- Precision machined pistons & connecting rods
- Cast iron crankcase & cylinders
Find In StoreThis item is only available for curbside and in-store pickup at a North 40 Outfitters store. Please check the store availability tab to view inventory at your preferred North 40 Outfitters.

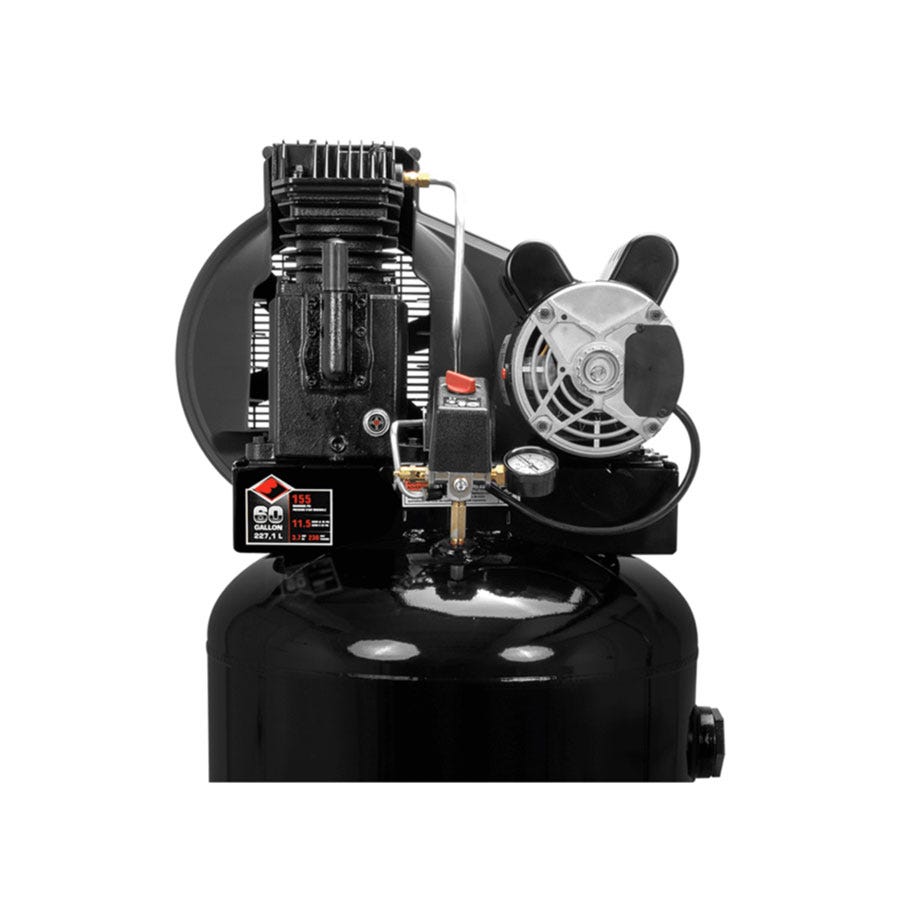

This Black Diamond compressor features a 60 gallon large capacity tank providing longer air tool run times for your impacts, ratchets, hammers, die grinders, etc. The cast iron twin cylinder, oil lubricated pump features a durable long life cast iron crankcase & cylinder body. An aluminum head & valve plate aid in heat dissipation along with the 12" balanced cast iron flywheel. An easily accessible oil level sight glass makes it easy to watch the oil level within the pump. The motor is 208-230 spread volt designed to operate at both 208 and 230 volt applications for maximum performance. The unit is equipped with a pressure switch, tank pressure gauge, and an on/off switch. It is comes filled with 100% full synthetic non-detergent air compressor oil for optimum performance and long life. Tie down holes on the platform help to secure the unit when transporting. This compressor is certified to UL1450 and CSA22.2 for sale in the U.S. and Canada.
Features:
- Cast iron twin cylinder single stage oil lubricated pump
- Stainless steel reed valves
- Precision machined pistons & connecting rods
- Cast iron crankcase & cylinders
- Splash lubrication
- Counter balanced automotive style crankshaft and heavy duty bearings
- Oil level sight glass with easily accessible oil fill
- 60 gallon ASME vertical stationary tank with 3/4" air outlet port
- Equipped with pressure switch, tank pressure gauge, and on/off switch
Specifications:
- Tank Size: 60 gallon ASME
- Maximum Working Pressure: 155 PSI
- SCFM @ 40 PSI: 13.4
- SCFM @ 90 PSI: 11.5
- Voltage: 208-230 Spread Volt
- Running HP: 3.7
- Certifications: UL & CSA
- Warranty: 2 Year Limited
