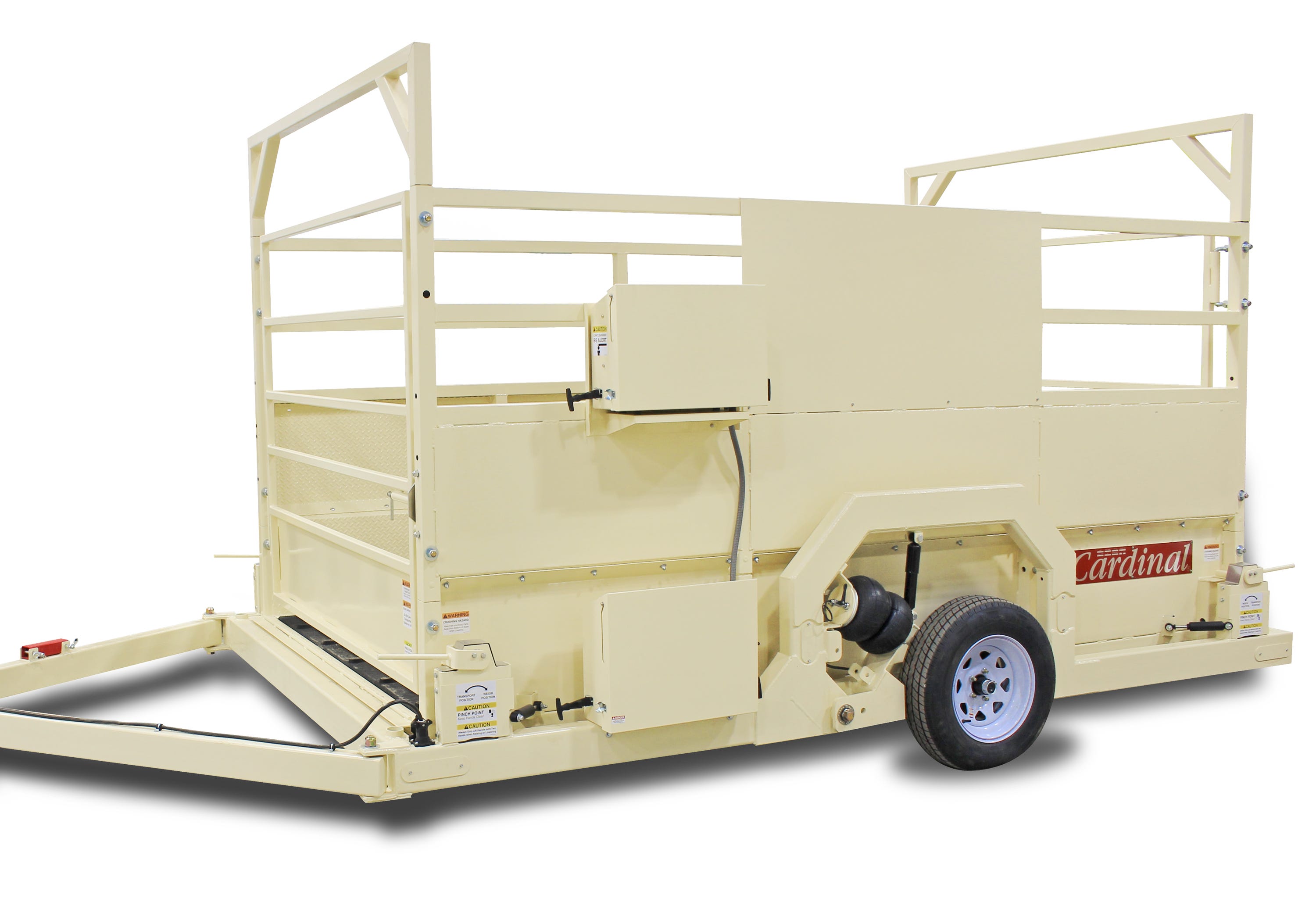

Cardinal Scale Mobile Single Axle Livestock Scale - 15000 lb maximum

Cardinal Scale mobile Weight Wrangler group animal scales provide a self-contained NTEP legal-for-trade weighing system that can be used on any firm surface with up to a 5% grade. The livestock scales include an integral air pump to easily lift and lower the trailer air bag suspension. Models come in 13' long single axle sizes. The X-lug rubberized component deck and steel cattle pen enclosure with dual gates are all suspended at four points within a mobile base frame. The Weight Wrangler can weigh groups of cattle up to 15-20 head at a time (15,000 lb capacity). The scale includes a weight indicator, ticket printer, USB port, battery, self-adjusting electric brakes and adjustable hitch height. Solar panels are optional.

LSM series scales include high-quality X-lug flooring standard, which is the livestock industry standard rubber floor for cattle handling. There is allocated open spacing between X-lug floor boards, which allows for easy wash out of scale after use. Other mobile and livestock scales on the market use a corrugated metal floor with a cover rubber mat, allowing livestock sewage to be trapped which leads to extensive rust damage. Ideal for the ranching industry, the durable steel cattle pens are UV-protected with baked-on industrial tan powder paint for long-lasting endurance in the elements. The LSM 15" trailer tires with semi-grade airbag suspension provide smooth towing and handling during transportation. The load cell junction box with additional condensation protection is located inside the battery box for easy access. Three heavy-duty panels and bows are placed on 18' models and Cardinal Scale panel construction is the heaviest in the industry for mobile and portable livestock scales.

A cattle blind for the mobile weighing center ensures that the operator doesn't upset livestock while operating the scale during the weight transaction. The weatherproof mobile weighing center indicator and printer are mounted to the exterior of the livestock pen. Extra storage is in the indicator/printer cabinet for spare ticket rolls or EDI reader wands. The mobile weighing center calculates shrink loss for livestock groups and displays current head count, gross weight and average weight. It also displays previous and total head count, gross weight and average weight. The inclinometer eliminates the need to recalibrate the scale after transport. The self-contained scale provides legal-for-trade weights in multiple locations with up to a 5% tilt angle (maximum allowed by NTEP) in any direction.

Tail lights and reflectors come standard with Cardinal Scale LSM series, while competitors only offer this an optional add-on. Tail lights on the LSM are hard-wired inside the battery box, so there's no plug to work loose. Also, the tail light wiring is run inside the lower frame, so this makes for a faster setup. On competitors scales, the user has to remove the external lights and wiring before they can start using the scale. Cardinal Scale weight indicators feature StableSENSE digital filtering that filters the weight signal to produce a stable weight display in spite of motion on the scale platform due to animal movement. The Weight Wrangler arrives fully assembled which ensures a quick start-up so the scale is ready for work as soon as it’s delivered.

• High-quality X-lug composite flooring for livestock stability and assurance included standard
• 3 heavy-duty panels and bows on 18' models. Cardinal Scale panel construction is the heaviest in the mobile cattle scale industry
• StableSENSE digital filtering compensates for animal movement while weighing to provide accurate weights
• Calculates shrink loss for livestock groups
• Mobile weighing center displays head count, gross weight and average weight
• Transactions stored on USB drive may be summarized for printing
• Can be used on any firm surface with up to a 5% grade
• Completely self-contained mobile animal weighing
• Self-adjusting electric brakes provide ease of maintenance
• Semi-grade airbag suspension provides smooth towing and handling during transportation
• High under-frame clearance
• NTEP legal for trade for commercial transactions
• Weigh groups of cattle up to 15-20 head at a time (15,000 lb capacity)
• Enclosed scale includes two cattle gates
• Durable steel cattle pens with UV-protected baked-on tan powder paint
• Heavy-duty bumper plates (1/2" thick)
• Tail lights and reflectors included standard
• Load cell junction box with additional condensation protection is located inside battery box for ease of adjustment
• Adjustable hitch height included standard
• Dual gate latch (optional)
• Cattle blind so the operator doesn’t upset livestock while operating the scale during the weight transaction
• Optional solar panel
• Scale comes fully assembled and ready for weighing use
• Port: USB for transaction storage on portable USB drive
• Tilt Angle: Up to 5% in any direction (maximum allowed by NTEP)
• Paint: UV-protected, baked-on tan powder paint
• Flooring: X-lug high-quality rubberized non-slip composite flooring with predefined floor plank seams in the scale deck prohibit debris from compiling underneath
• Digital Filtering: StableSENSE digital filtering that filters the weight signal to produce a stable weight display in spite of motion on the scale platform due to animal movement
• Accuracy Class: III / IIIL
• Options: Collector Panel Mount Bow (qty 1), Horse Risers, Dual Latch Gate and Solar Panels
• Power Requirements: 12V automotive type battery (battery included)
• Deck Height: 6" when in weigh mode for easy step-in
• Indicator Livestock Functions: Shrink loss, current head count, gross weight, average weight and previous and total head count, gross weight and average weight
• Inclinometer: Included with scale and detects scale angle to determine if angle is out of acceptable tolerance for weighing (blanks out if out of NTEP tolerance - up to 5% tilt angle)
• Indicator Display: 240 x 64 pixel monochrome graphics LCD with white LED backlight and visible in direct sunlight
• Keypad: 60 key color-coded keypad with QWERTY keys plus four soft keys and 13 function keys
• Air Pump: Integral air pump to lift and lower trailer air bag suspension
• Load Cells: NTEP stainless steel model ZX-10000 tension load cells
• Gates: Two swing gates included
• Printer: Cardinal Scale model CTP-1 dot matrix ticket printer included in mobile weigh center for NTEP legal-for-trade ticket printing of transactions
• Brakes: Electric brakes (4)

• Length: 20' 6"
• Width: 8' 11-3/8"
• Height: 8' 10-1/8"
• Capacity: 15,000 lb x 5 lb
• Indicator Width: 5"
• Indicator Height: 1.33"
• Speed Limit: 35 mph (classified as a farm implement)
• Country of Origin: USA

• 225 weight indicator, CTP-1 ticket printer and 12V battery
