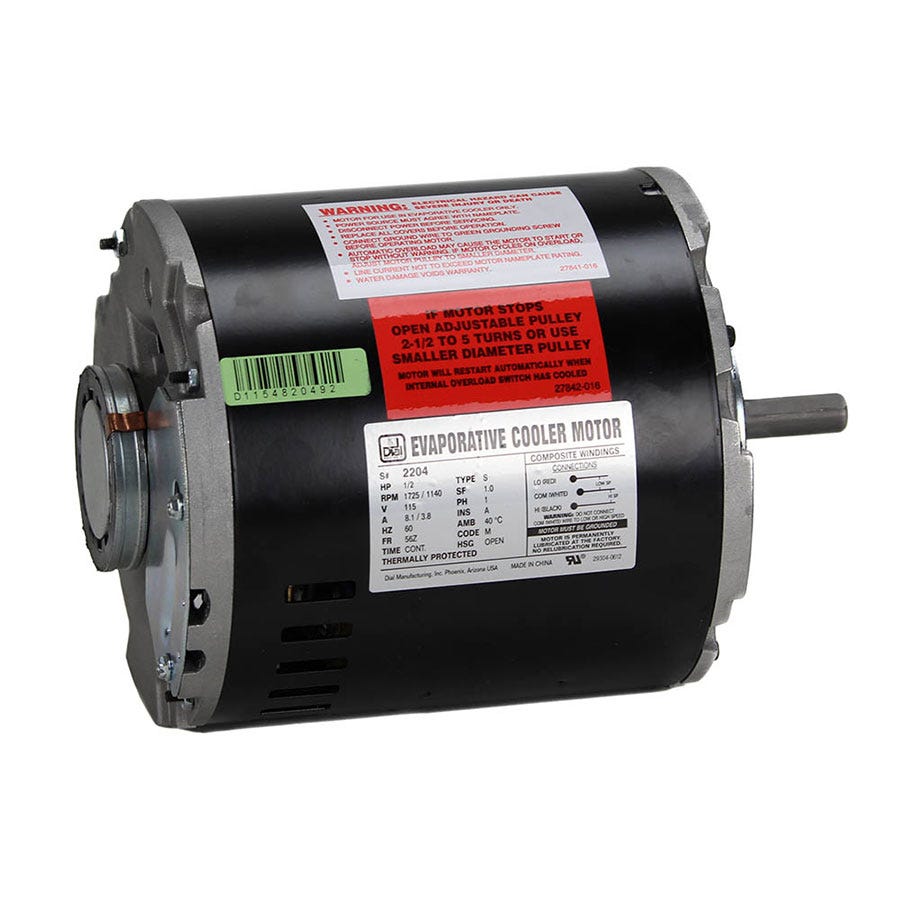

Dial Mfg 1/2 HP 2-Speed Motor 2204

The Dial Mfg 1/2 HP 2-Speed Motor is a residential replacement motor built for evaporative coolers using a NEMA 56Z frame. This is the motor only, with no base included, designed to drop into existing cooler setups that use this standard frame size. A heavy duty bronze bearing and high efficiency design support reliable long-term operation, while auto reset thermal overload protection shuts the motor down if it overheats and automatically resets once it cools, helping prevent damage from extended high-load operation. A high temperature insulation system and superior starting switch features round out a motor built to hold up to the demands of regular seasonal cooling use. UL recognized as a component, with label and instructions provided in both English and Spanish.

Features

• 1/2 HP 2-speed motor provides flexible output for evaporative cooler applications requiring variable speed control.
• NEMA 56Z frame is a standard residential motor size, simplifying replacement in compatible cooler setups.
• Heavy duty bronze bearing supports long-term durability under regular seasonal operation.
• High efficiency design helps minimize energy consumption during operation.
• Auto reset thermal overload protection automatically shuts the motor off during overheating and resets once it cools down, helping prevent long-term damage.
• High temperature insulation system supports reliable performance under sustained operating conditions.
• Superior starting switch features support consistent, dependable startup.
• UL recognized component for verified safety compliance.
• Label and instructions provided in English and Spanish.

Specifications

• Part #: 2204
• Horsepower: 1/2 HP
• Speed: 2-speed
• Frame: NEMA 56Z
• Voltage: 115V
• Amp rating: 8.1
• Shaft diameter: 1/2 in.
• Base included: no. Motor only
