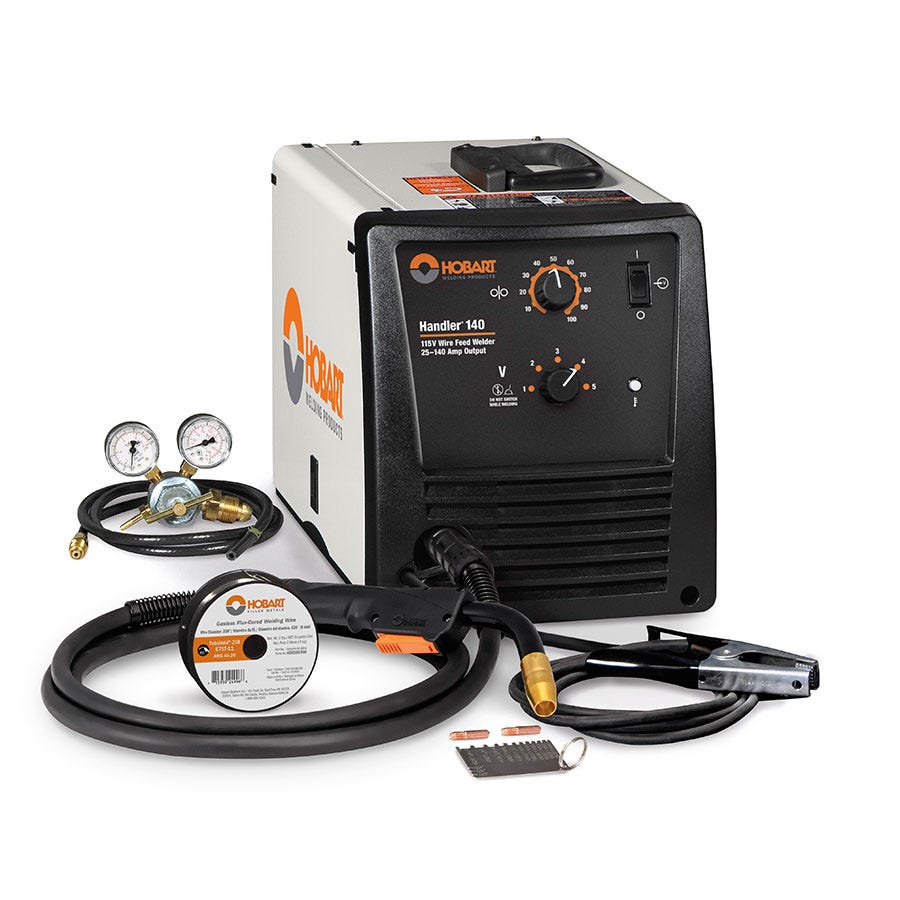

Hobart Handler 140 MIG Wire Welder

Sku
750896
Item#:
500559
$679.99
  • Excellent arc performance
  • Industrial cast aluminum wire drive system
  • 5-position voltage control
  • Dual-groove quick change drive roll

This item is only available for curbside and in-store pickup at a North 40 Outfitters store. Please check the store availability tab to view inventory at your preferred North 40 Outfitters.

Reliable. Durable. Superior arc with 140 A of power.

The Handler 140 operates on common 115-volt power. Simply plug it in and weld —no additional power needed. Weld as thin as 24 gauge and up to 1/4 inch in a single pass, with a broad output range of 25 140 amps. Easily weld thicker materials with multiple passes. Quick and easy setup with Quick Select™ drive rolls which offer three grooves —two for different sizes of solid wire and a third for flux cored wire. Easy to set and adjust for different materials and thicknesses — features five output voltage settings.

Features:

  • Five-position voltage control and infinite wire feed speed: Five voltage ranges allow you to fine-tune the arc.
  • Spool hub assembly accommodates 4- or 8-inch spools: Offers you flexibility to use small or large spools of wire to better suit your welding needs.
  • Convenient polarity changeover: Access makes it quick and easy to change polarity for solid or tubular wire.
  • Quick Select drive roll: Makes setup quicker by offering three grooves — two for different sizes of solid wire and a third for flux-cored wire.
  • Hobart 5/3/1 industrial warranty: Five-year warranty on transformers, stabilizers and main rectifiers; three years on generators, PC boards and drive systems; and one year on guns (MIG, plasma and TIG torches).

Includes:
10 ft. (3 m) HR-100 MIG gun with ergonomic, rubber-padded handle
10 ft. (3 m) work cable with clamp
Power cord with plug
Built-in gas solenoid valve and dual-gauge regulator with gas hose
.030 in. (0.8 mm) contact tips

Quick Select™ drive roll for .024 in., (0.6 mm) or .030/.035 in. (0.8/0.9 mm),

solid wire, and .030/.035 in., (0.8/0.9 mm) flux-cored wire

Sample spool of .030 in. (0.8 mm), self-shielding flux-cored wire
Material thickness gauge

Applications:
Maintenance/repair
Auto body
DIY
Farm/ranch
Metal art
Construction

Specifications:
Amperage: 25 A - 140 A
Material Thickness: Mild Steel 24 ga. (0.5 mm) - 1/4 in. (6.4 mm)
Weldable Metals: Aluminum, Stainless Steel, Steel
Input Voltage: 110/115/120 V
Input Phase: 1-Phase
Input Hz: 60 Hz
Current Type: DC
Rated Output: 90 A @ 20% duty cycle
Max Open Circuit Voltage: 28 VDC
Wire Feed Speed: 40 IPM - 700 IPM
Wire Diameter: Stainless 0.024 in. - 0.035 in., Solid Steel 0.024 in. - 0.035 in., Flux Cored 0.03 in. - 0.035 in.
Portability: Handle(s)
Weld Output: CV
Applications: Welding Projects
Net Width: 10.625 in
Net Height: 12.375 in
Net Length: 19.5 in
Net Weight: 57 lbs
Warranty: 3 Years Hobart Warranty
