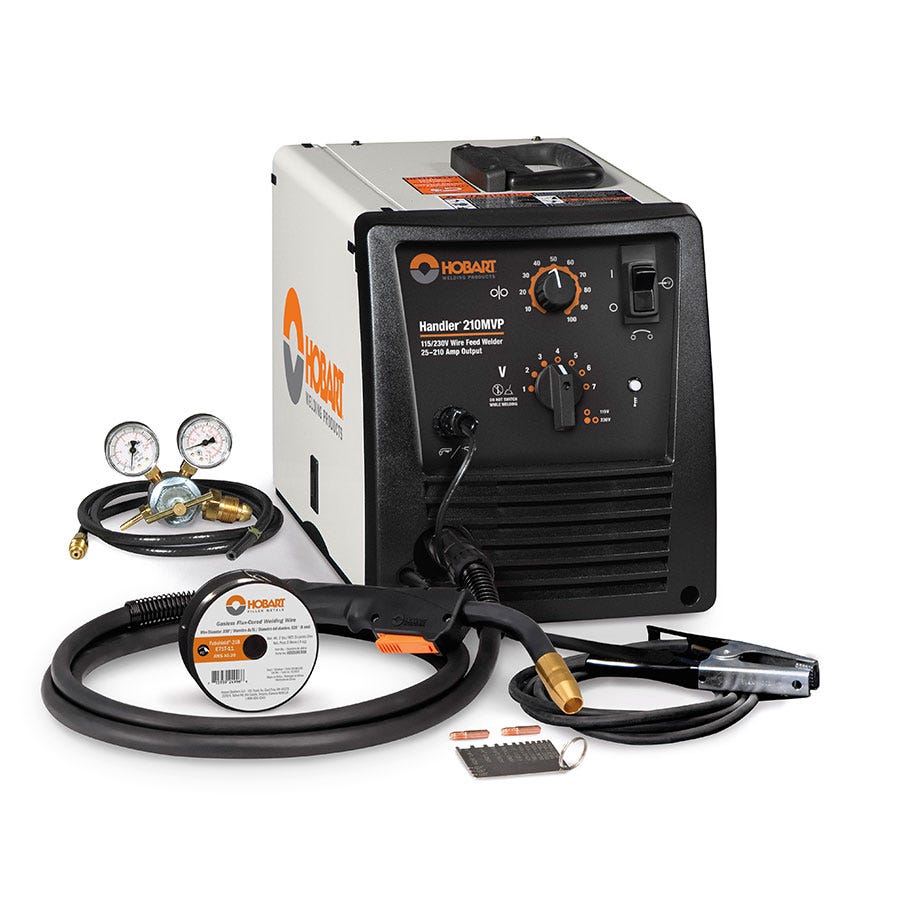

Hobart Handler 210MVP MIG Wire Welder

Available
Sku
639113
Item#:
500553
$1,099.99
  • Portable MIG Welder 110V or 220V
  • 210 Amp of welding power
  • Handles 3/8" thick mild steel
  • Easy to adjust

Dual power. Superior arc at best value with 210 A of power.

The Handler 210MVP is one of the most powerful and versatile machines. Dual voltage input power gives you the flexibility to weld on either 115 or 230 volts. Connect to common 115-volt input power or 230-volt without the use of any tools. Simply choose the plug that fits the receptacle. Weld as thin as 24 gauge up to 3/8 inch in a single pass with a broad output range of 25–210 amps. Easily run thicker materials with multiple passes. Quick and easy setup with Quick Select™ drive rolls which offer three grooves —two for different sizes of solid wire and a third for flux-cored wire. Easy to set and adjust for different materials and thicknesses — features seven output voltage settings for finer control, less spatter and cleaner welds.

Features:

  • Seven (230 V) and four (115 V) voltage settings, with infinite wire feed speed: Offers easier fine control of the output parameters for improved arc performance with less spatter, and better bead appearance with less clean up.
  • Spool gun ready: Spool guns enhance feedability and reduce “bird-nesting” associated with soft aluminum wires. No additional control box or adapter is required to connect the SpoolRunner™ 100 spool gun
  • Dual-voltage capability with MVP (multi-voltage plug): Allows you to connect to common 115 or 230 V power receptacles without the use of any tools — simply choose the plug that fits the receptacle.
  • Built-in wire feeder with quick-release drive roll lever: Positive feed with adjustable tension plus easy accessibility to thread new wire.
  • Spool hub assembly accommodates 4- or 8-inch spools: Offers you flexibility to use small or large spools of wire to better suit your welding needs.
  • Convenient polarity changeover with tip holder: Access makes it quick and easy to change polarity for solid or tubular wire. Includes convenient storage holes for spare tips.
  • Quick Select drive roll: Makes setup quicker by offering three grooves — two for different size solid wire and a third for flux-cored wire.
  • Hobart 5/3/1 industrial warranty: Five-year warranty on transformers, stabilizers and main rectifiers; three years on generators, PC boards and drive systems; and one year on guns (MIG, plasma and TIG torches).

Includes:
10 ft. (3 m) HR-100 MIG gun with ergonomic, rubber-padded handle
10 ft. (3 m) work cable with clamp
Power cord with 5-15P (115 V, 15 A) and 6-50P (230 V, 50 A) MVP™ plugs
Built-in gas solenoid valve and dual-gauge regulator with gas hose
.030 in. (0.8 mm) contact tips

Quick Select™ drive roll for .024 in. (0.6 mm) or .030/.035 in. (0.8/0.9 mm) solid wire,

and .030/.035 in. (0.8/0.9 mm) flux-cored wire

Sample spool of .030 in. (0.8 mm) self-shielding flux-cored wire
Material thickness gauge

Applications:
Maintenance/repair
Boat/marine
Metal art
Construction
Farm/ranch
DIY
Auto body


Specifications:
Material Thickness: Mild Steel 24 ga. (0.5 mm) - 3/8 in. (9.5 mm)
Weldable Metals: Aluminum, Stainless Steel, Steel
Input Voltage: 110/115/120 V 220/230/240 V
Input Phase: 1-Phase
Input Hz: 60 Hz
Current Type: DC
Rated Output: 115 V, 90A @ 20%,230V, 150A @ 30%
Max Open Circuit Voltage: 34 VDC
Wire Feed Speed: 40 IPM - 770 IPM
Wire Diameter: Stainless 0.024 in. - 0.035 in.
Solid Steel: 0.024 in. - 0.035 in.
Flux Cored: 0.03 in. - 0.045 in.
Portability: Handle(s)
Weld Output: CV
Applications: Welding Projects
Net Width: 10.625 in
Net Height: 12.375 in
Net Length: 19.5 in
Net Weight: 79 lbs
Warranty: 3 Years Hobart Warranty
