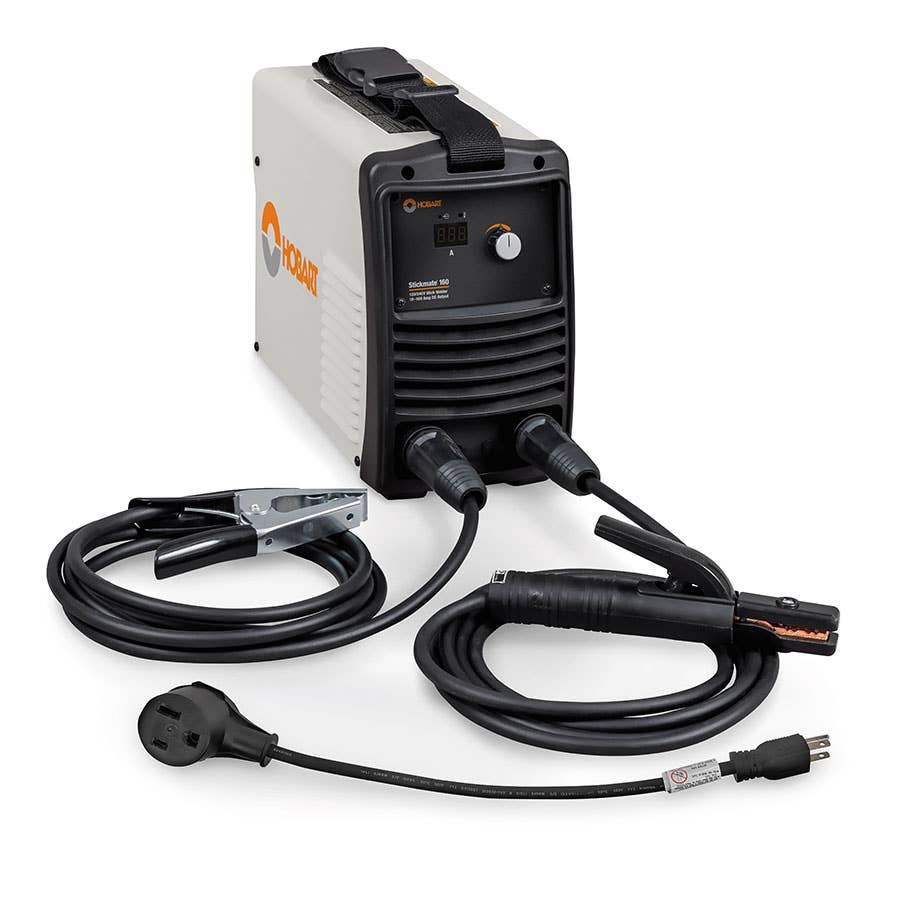

Hobart Stickmate 160 DC

Stickmate 160

The Stickmate 160 offers a powerful, portable welding solution with a simple user interface and precise digital controls. Designed for versatility, it allows operation on both 120V and 240V power without requiring tools to switch voltages. Its lightweight design makes it easy to transport and store, providing convenience for welding projects in various locations.

Features and Benefits

• Dual-voltage input for 120V or 240V operation with included adapter
• Single-knob adjustment with a digital display for fine-tuned control
• DC output reduces arc outages, spatter, and sticking for better weld quality
• Lightweight design at just 10.6 lbs for enhanced portability
• Wide amperage range accommodates different materials and thicknesses
• Hobart 5/3/1 industrial warranty ensures long-term reliability

Applications

• DIY projects
• Metal art
• Farm and ranch maintenance
• General repair and maintenance

Specifications
Input Power: 120V / 240V
Rated Output: 80A at 15% duty cycle (120V), 160A at 15% duty cycle (240V)
Welding Amp Range: 10–80A (120V), 10–160A (240V)
Max. Open-Circuit Voltage: 95V
Net Weight: 10.6 lbs (4.8 kg)
Amps Input at Rated Output: 30.3A (120V), 34.0A (240V)
Dimensions: 10.24 in (H) x 6.3 in (W) x 12.6 in (D)
Max. Mild Steel Thickness: 1/8 in (120V), 3/8 in (240V)

Includes

• 10 ft. (3 m) electrode cable with heavy-duty holder
• 10 ft. (3 m) work cable with clamp
• 6.5 ft. (2 m) power cord with adapter for 120V and 240V

The Stickmate 160 is a compact yet capable welding unit, ideal for users seeking flexibility, ease of use, and portability without compromising performance.
