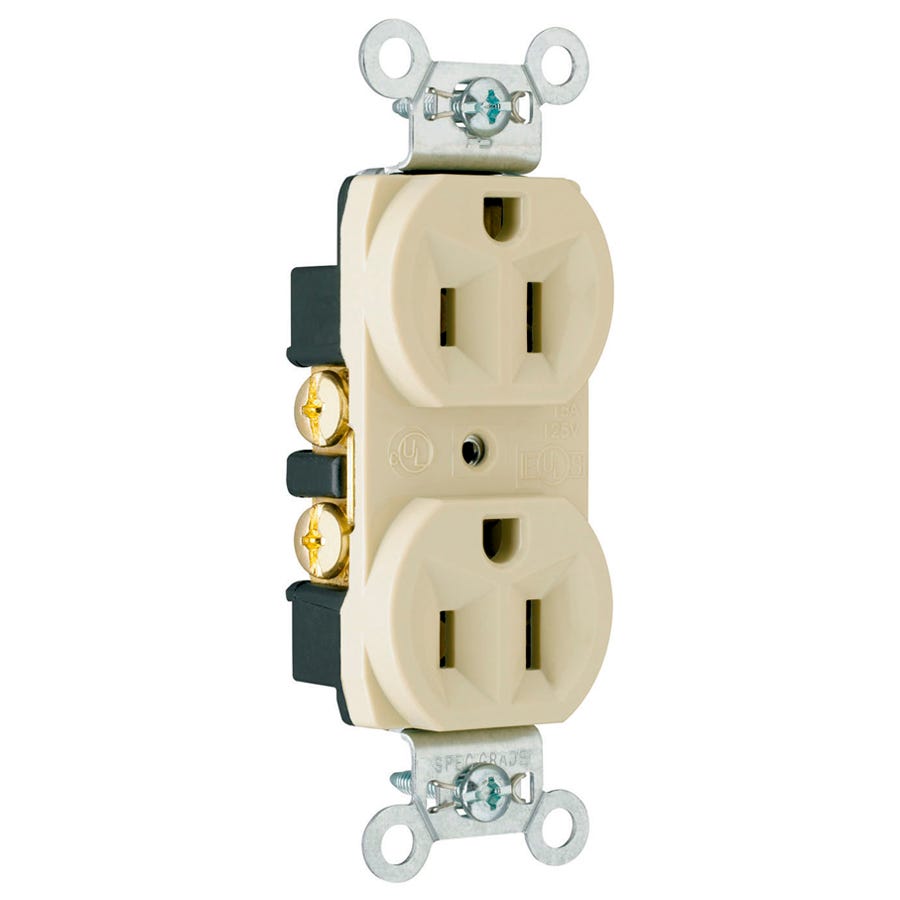

Find In StoreLegrand Commercial-Grade Duplex Outlet deliver rugged, lasting construction that hold up in a high-use commercial environment, while still maintaining the look of a traditional outlet. They are also ideal in residential applications where the outlets are regularly being used, such as the hallway for the vacuum or in the kitchen for hand held appliances.
- Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly
- .032" thick, brass, triple-wipe power contacts for lasting retention
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Impact-resistant nylon face and thermoplastic back body
- 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors
- Terminal compartments isolated from each other for positive conductor containment
- Tri-drive terminal and mounting screws
- Auto-ground clip assures positive ground
- For compatible wall plate options, from unbreakable plates to screwless plates to metal wall plates
- Volts: 125V
- Volts (AC): 125
- Capacity: Duplex
- Grade Type: Construction
- Type: Receptacles
- Special Features: Back, Side Wire
- Depth: 0.78"
- Height: 3.281"
- Width: 1.322"
- RoHS: Yes
- CSA Listing Info: C22.2 No. 42
- CSA Standard: Yes
- Federal Spec: Yes
- UL Listing No: UL498
- UL Standard: Yes
- UN SPSC: 39121406
Eco-Benefit Information
- RoHS Compliant
