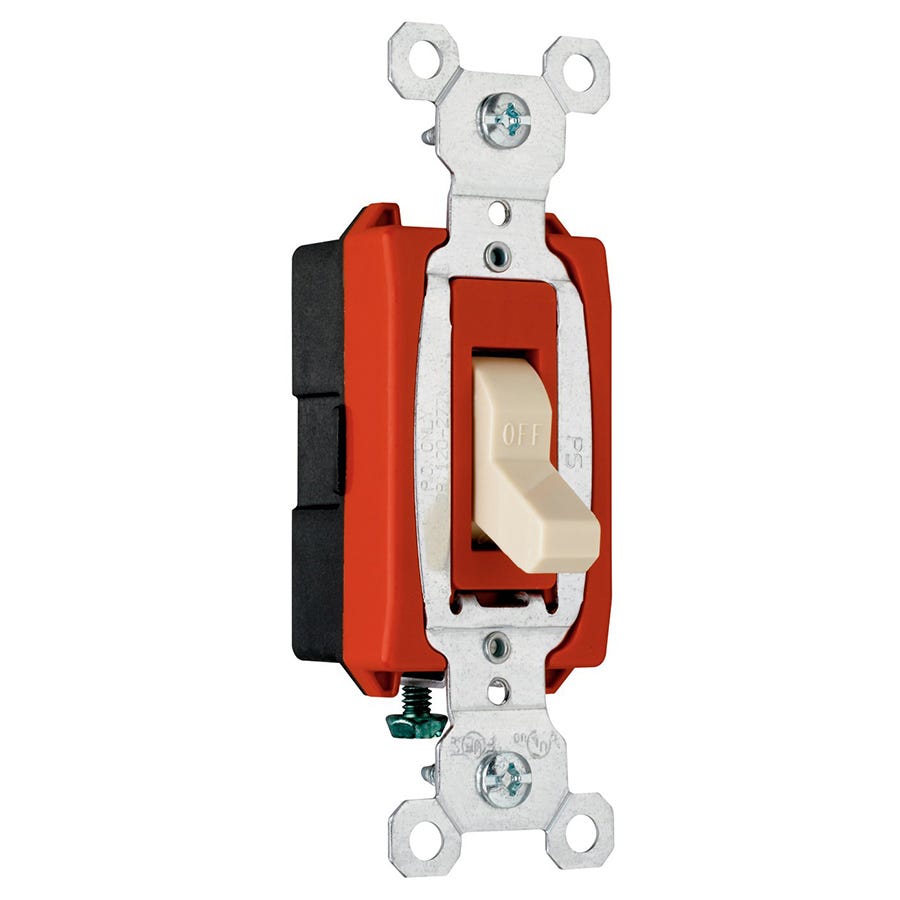

Legrand Pass & Seymour Hard Use Specification Grade Switch - Ivory
Sku
1113452
$3.99
- 1 pcs brass alloy contact arm for reliable
- High strength thermoplastic polycarbonate toggle
- Breaking and chipping under heavy abuse
- Heavy-duty toggle bumpers for smooth and quiet operation
Find In StoreLegrand Pass & Seymour Hard Use Specification Grade Switch feature is construction 1 pole Switch, Back & Side Wire and 20 Amp 120V/277V.
- 1 pcs brass alloy contact arm for reliable electrical performance
- One-piece steel strap with integral ground is plated for corrosion resistance
- High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse
- Heavy-duty toggle bumpers for smooth and quiet operation
- Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation
- Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 - #10 AWG copper or copper-clad wire
- Cam designed for fast make with positive break action to minimize arcing and prolong switch life
- Oversized silver alloy contacts for longer dependable switch life
- Tri-drive terminal and mounting screws
- For compatible wall plate options, from TradeMaster unbreakable plates to radiant screwless plates to metal wall plates
- Color: Ivory
- Duty: Hard Use
- Number of Poles: 1
- Depth: 1.073"
- Height: 3.281"
- Width: 1.320"
- Amps: 20 Amp
- Volts: 120/277VAC
- Volts (AC): 120V/277V
- Grade Type: Specification
- Country of Origin: Mexico
- CSA Listing Info: C22.2 111
- CSA Standard: Yes
- Federal Spec: Yes
- UL Listing No: 20
- UL Standard: Yes
- UN SPSC: 39121507 Eco-Benefit Information:
- RoHS Compliant
