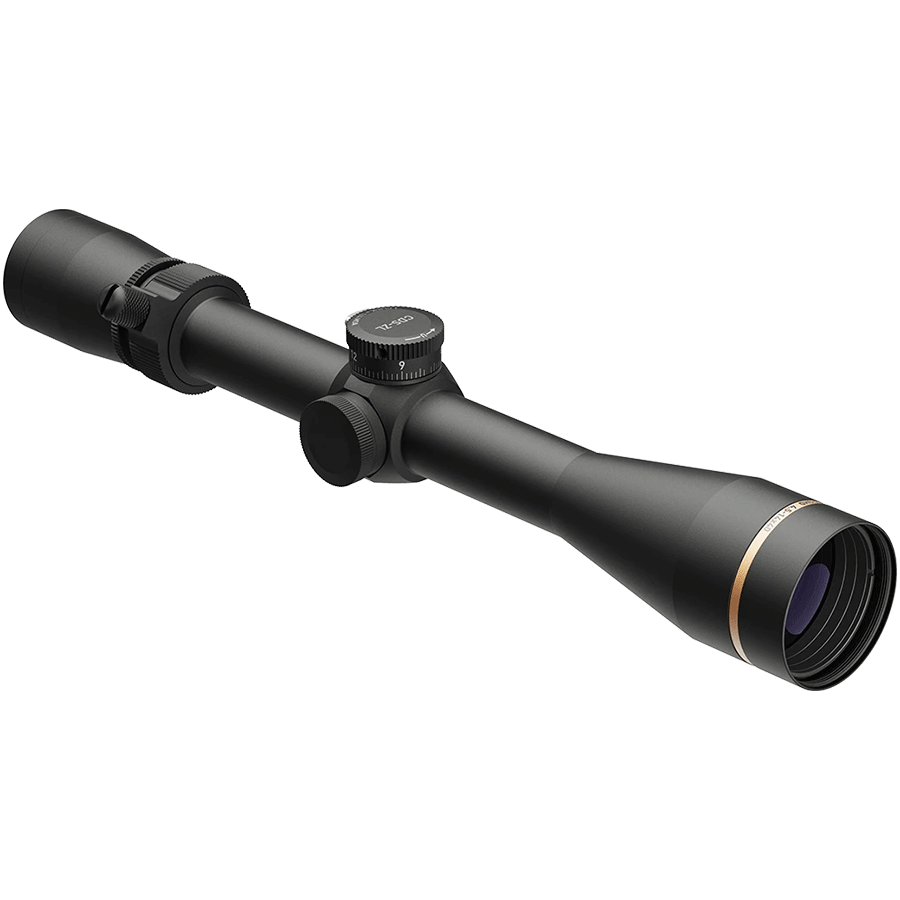

Leupold VX-3HD 4.5-14x40 CDS-ZL Duplex Rifle Scope

The VX-3HD 4.5-14x40mm delivers legendary performance and elite optical clarity in an incredibly tough, lightweight package. It's extremely popular magnification range is perfect for timber and western mountain hunting.

The VX-3HD delivers outstanding performance in low light. With Leupold's Elite Optical System, the VX-3HD delivers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light and the resolution and clarity that diehard hunters and shooters demand. Also gave it match-grade repeatability and ergonomic controls that are easy to read and use, even with gloves. The VX-3HD is the best lightweight, low-light hunting scope in its class. And with its low-profile, one-revolution CDS ZeroLock dial, you can be confident your dial will only move when you want it to. Push the button to unlock it, dial and then rotate it back to zero to lock it in place. It's that simple. Like all Leupold riflescopes, it's designed, machined and assembled in the USA and guaranteed for life.

• 3:1 Zoom Ratio: A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power, so you can dial your power down for close encounters or all of the way up for long-range shots
• Custom Dial System: Leupold's Custom Dial System (CDS) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number and aim dead on
• Zero Lock Dial: The ZeroLock system eliminates accidental dial movement by locking it in place
• Lightweight Aluminum Housing: Aluminum offers excellent durability and ruggedness without adding unnecessary weight
• Lockable Eyepiece: A traditional eyepiece lock ring allows you to lock in a focus setting that is best for your eye
• Scratch Resistant Lenses: Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection
• Waterproof, Fogproof and Shockproof: Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes and shocks, so the internals of the optics stay moisture free and crystal clear for life
• Lifetime guarantee
• Made in USA

Duplex

• Invented in 1962 by Leupold
• Defined by heavy posts
• Stands out against cover in low light
• Quick target acquisition with thin lines at the center
• Most popular reticle in the world
• Rear (second) focal plane

Specifications

• Finish: Matte
• Reticle Focal Plane: Second Focal Plane
• Elevation Adjustment Type: CDS-ZL
• Zero Stop: Yes
• Locking Dial: Yes
• Rezero Type: Set Screw
• Windage Adjustment Type: Finger Click
• Custom Dial Compatible: Yes
• Reticle: Duplex
• Light Management System: Elite Optical System
• Magnification Type: Variable
• Elevation Adjustment Value per Click: 1/4MOA
• Elevation Adjustment Range: 75 MOA
• Elevation Adjustment Range (@ 100m): 218.2cm
• Elevation Adjustment Per Revolution: 15 MOA
• Elevation Dial Travel Limit: 14.5 MOA
• Windage Adjustment Value per Click: 1/4MOA
• Windage Adjustment Range: 75 MOA
• Windage Adjustment Range (@ 100m): 218.2 cm
• Windage Adjustment Per Revolution: 15 MOA
• Magnification Max: 14
• Magnification Min: 4.5
• Objective Lens Diameter: 40mm
• Linear FOV Low Mag (@100 yd): 19.9'
• Linear FOV High Mag (@100 yd): 7.4'
• Angular FOV Low Mag: 3.8°
• Angular FOV High Mag: 1.4°
• Eye Relief Low Mag: 4.4"
• Eye Relief High Mag: 3.6"
• Fixed Parallax-Free Distance: 150 yd
• Total Length: 12.67"
• Mounting Space: 5.96"
• Front Mounting Space: 2.25"
• Rear Mounting Space: 2.48"
• Eyepiece Length: 3.08"
• Objective Length: 3.63"
• Objective Diameter: 1.83"
• Eyepiece Diameter: 1.56"
• Maintube Diameter: 1"
• Weight: 13.4 oz
