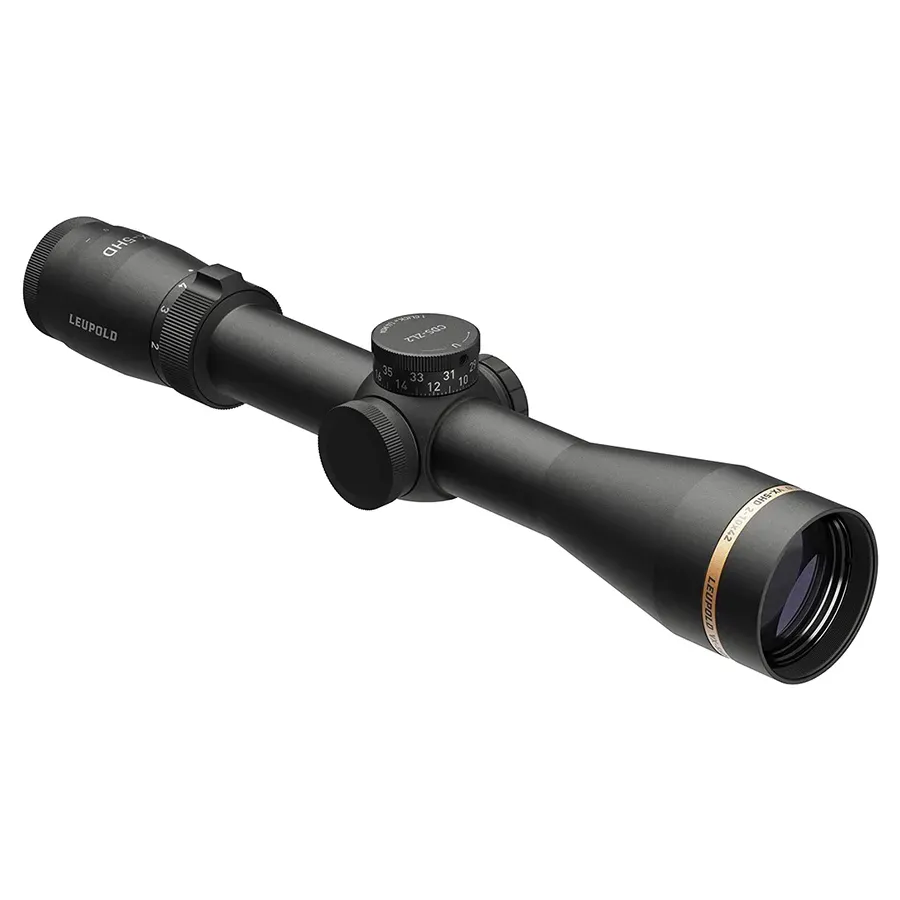

Leupold VX-5HD 2 10 x 42 Illuminated Firedot Duplex Reticle Scope

Completely at home on the side of a mountain chasing monster goats or ringing steel at the range, the extremely versatile 2-10x magnification gives you a super-wide field of view, while also allowing for clear, long-range shots. Plus, with proprietary firedot illumination you get a bright, intuitive aiming point that won't get lost in low-light conditions. The VX-5HD 2-10x42mm defines relentless versatility. Its wide magnification ranges give hunters and shooters the ability to adapt to any environment. Built around Leupold’s Professional-Grade Optical System, it offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field. And when it’s time to pull the trigger, you’ll want the accuracy and additional elevation the two-turn CDS ZeroLock 2 dials deliver. As the lightest, most rugged 5:1 riflescope in its class, your VX-5HD will never slow you down. It's 100% waterproof and fogproof. And like all Leupold riflescopes, it's designed, machined and assembled in the USA and guaranteed for life.

5:1 Zoom Ratio

A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.

Professional -Grade Optical System

Leupold's Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light and the resolution and clarity that professional guides and shooters demand in the field.

Custom Dial System

Leupold's Custom Dial System (CDS) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number and aim dead on.

CDS-ZL2 Elevation Dial

The CDS-ZL2 (ZeroLock 2) provides two revolutions of elevation adjustment while eliminating accidental dial movement with the push-button ZeroLock system. It also features Leupold's award-winning Custom Dial System (CDS), which allows shooters to order a laser-marked bullet-drop dial to match their exact ballistics and conditions.

Second Focal Plane

In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.

Zero Lock Dial

The ZeroLock system eliminates accidental dial movement by locking it in place.

Zero Stop

The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.

Guard-ION

Guard-ion is a hydrophobic lens coating that sheds dirt and water for a maintenance-free, clear, crisp image.

Illuminated

This scopes comes with an illuminated reticle, which can help you get on target faster in low-light situations.

Motion Sensor Technology (MST)

Motion Sensor Technology (MST) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.

Waterproof, Fogproof, & Shockproof

Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes and shocks, so the internals of the optics stay moisture free and crystal clear for life.

Illum. Firedot Duplex

• Brings new technology to a classic design
• Fiber-optic powered red dot
• Multiple brightness settings for changing conditions
• FireDot Technology brings your eye to the center of the reticle for quick target acquisition
• Broad range of shooting applications
• Rear (second) focal plane

Specifications

• Finish: Matte
• Adjustable Objective: No
• Side Focus: No
• Elevation Adjustment Type: CDS-ZL2
• Locking Dial: Yes
• Revolution Indicator: Yes
• Rezero Type: Set Screw
• Windage Adjustment Type: Pop-Up Rezero
• Custom Dial Compatible: Yes
• BDC Dial Included: No
• Reticle Type: Illuminated
• Reticle: Illum. FireDot Duplex
• Magnification Type: Variable
• Battery Type: CR2032
• Switch Type: Push Button
• Nightvision Compatible Illumination: No
• Daylight Bright Illumination: Yes
• Electronic Reticle Level: No
• Weight: 18.9 lb
• Elevation Adjustment Value per Click: 1/4MOA
• Elevation Adjustment Range: 70 MOA
• Elevation Adjustment Range: 20 MIL
• Elevation Adjustment Range: 204 cm @ 100m
• Elevation Adjustment Per Revolution: 20 MOA
• Elevation Dial Travel Limit: 38 MOA
• Windage Adjustment Value per Click: 1/4MOA
• Windage Adjustment Range: 70 MOA
• Windage Adjustment Range: 20 MIL
• Windage Adjustment Range: 204 cm @ 100m
• Windage Adjustment Per Revolution: 15 MOA
• Magnification: 10 (Max)
• Magnification: 2 (Min)
• Objective Lens Diameter: 42"
• Linear FOV Low Mag: 56.5' @100 yd
• Linear FOV High Mag: 11.5' @100yd
• Angular FOV Low Mag: 10.8°
• Angular FOV High Mag: 2.2°
• Eye Relief Low Mag: 3.7"
• Eye Relief High Mag: 3.8"
• Fixed Parallax-Free Distance: 150 yd
• Battery Life Low Intensity: 1600 hrs
• Battery Life Medium Intensity: 1000 hrs
• Battery Life High Intensity: 300 hrs
• Number of Illum Settings: 8
• Total Length: 12.6"
• Total Mounting Space: 5.6"
• Front Mounting Space: 1.7"
• Rear Mounting Space: 2.6"
• Eyepiece Length: 3.3"
• Objective Length: 3.6"
• Objective Diameter: 2"
• Eyepiece Diameter: 1.8"
• Maintube Diameter: 30"
