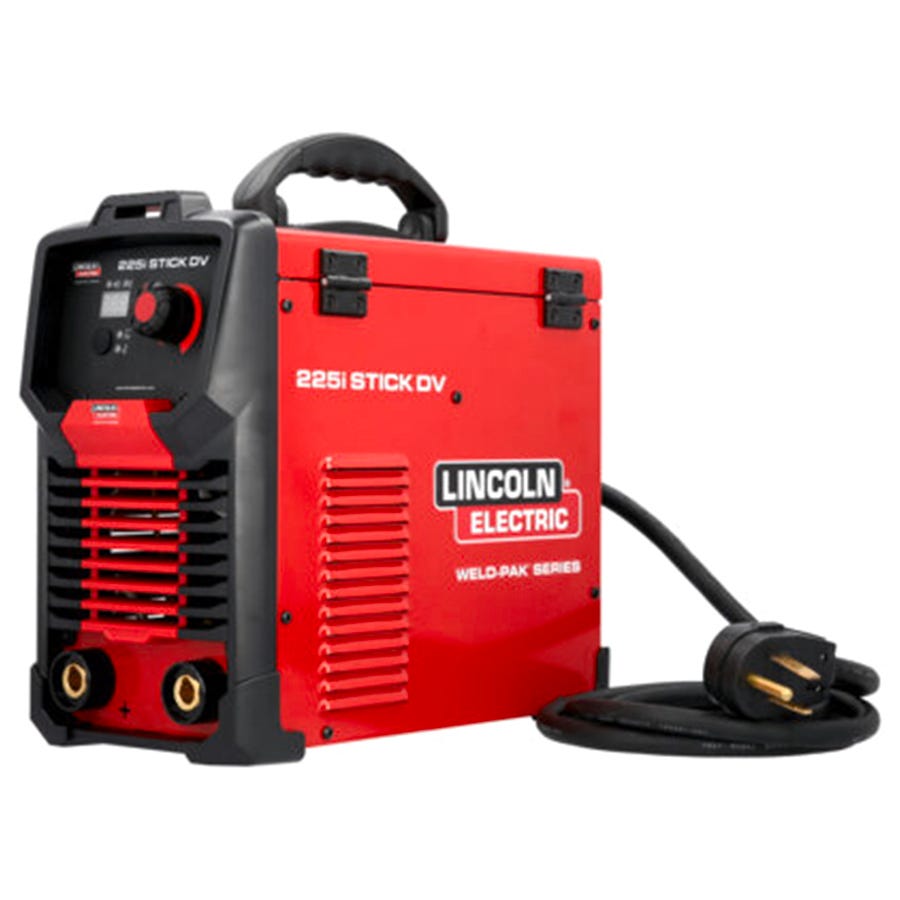

Lincoln Electric Weld-Pak 225i DV Stick/TIG Welder - 120/230V
- Welds 12 ga to 5/16" single pass
- 30% duty cycle at 225 amps
- 10-225 amp DC welding output range
- TIG capability with additional attachments
Find In StoreThe dual voltage Weld-Pak 225i Stick DV stick/TIG Welder has a 10 to 225 amp DC output that supports mild steel stick electrode diameters from 5/64" to 5/32". Weighing in at 20 lb, it is lightweight and portable. The case has a tool box top for storing cables or tools. The smooth arc provides strong welds on 12 ga sheet metal to 5/16" thick steel. It has a 30% duty cycle at 225 amps when connected to 230VAC. Touch Start TIG welding is supported. A simple display allows you to dial in the weld settings so you can get started quickly and easily on any job, anywhere - maintenance work, fabrication, light structural and everything in between.
- 120VAC/230VAC input, 120/230/1/60
- 10-225 amp DC welding output range
- 30% duty cycle at 225 amps
- Welds 12 ga to 5/16" single pass
- Comes with a shoulder strap, 13' work cable & clamp, 13' electrode cable & electrode holder and 6' input cable with attached three-prong 230VAC 6-50P plug with 5-15P 120VAC adapter
- TIG capability with additional attachments
- Height: 12"
- Width: 8"
- Length: 14"
- Weigh: 20 lb
- Warranty: 1 Year Warranty
- Input Voltage #1 (Voltage/Phase/Hertz): 230/1/50/60
- Rated Output #1A (Current/Voltage/Duty Cycle): 225/29/30 Stick
- Rated Output #1B (Current/Voltage/Duty Cycle): 225/19/50 TIG
- Input Current at Max Rated Output #1 (Current): 28
- Input Voltage #2 (Voltage/Phase/Hertz): 120/1/50/60
- Rated Output #2A (Current/Voltage/Duty Cycle): 65/23/50 Stick
- Rated Output #2B (Current/Voltage/Duty Cycle): 95/14/50 TIG
- Input Current at MAX Rated Output #2 (Current): 15
- Machines Processes: Stick (SMAW), TIG (GTAW)
- Open Circuit Voltage: 82
- Number of Operators per Machine: 1
- Input Voltage: 230VAC; 120VAC
- Input Current: 28 amps 230V input, 15 amps 120V input
- Input Hertz: 50/60
- Input Phase: 1
- Output Range: 10-225 amps
- Ingress Protection Rating: IP2X
- Output Range By Mode: 10A/20.4V-225A/29V Stick, 10A/10.4V-225A/19V TIG
- Machines Maximum Weldable Thickness: 5/16
- Machines Minimum Weldable Thickness: 12 ga
- Machines Communication Technology: Digital
- Work Lead Connector Type: Dinse
- (1) Shoulder Strap
- (1) 13' Work Cable & Clamp
- (1) 13' Electrode Cable & Electrode Holder
- (1) 6' Input Cable with three-prong 230VAC Plug
- (1) 120VAC Plug Adapter
