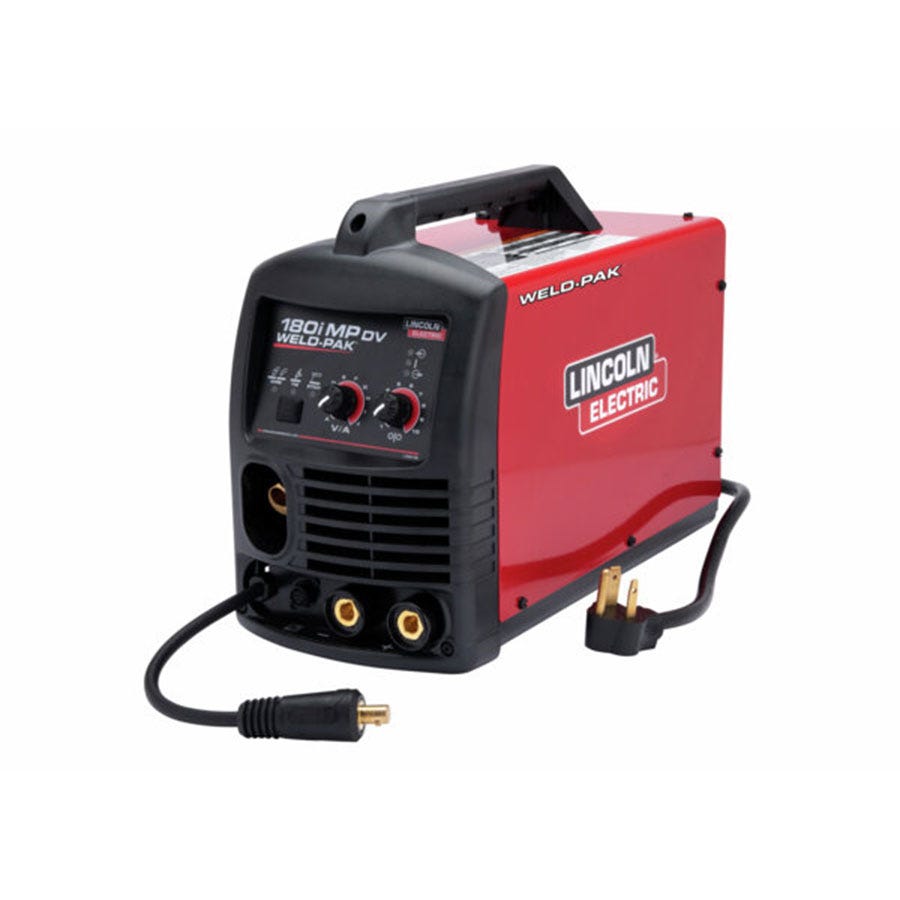

Lincoln Electric Weld-Pak 180i Multi-Process Stick/TIG/MIG Welder
- Enhanced durability
- Capable performance
- Compact design
- Multi process welder
Find In Store
120 or 230 VOLT AC INPUT COMPACT MULTI-PROCESS WELDER
The WELD-PAK® 180i MP DV welding machine is a lightweight and portable welder that connects to 120-Volt or 230-Volt power. This machine is an excellent choice for MIG, Stick, Flux-Cored and DC TIG welding. The intuitive user interface, easy setup and full list of accessories permits welding in no-time. The simple two knob control allows easy set up between the welding process. With the ability to switch to multiple processes you'll be ready to tackle any project. The Lincoln Electric WELD PAK® 180i MP DV is an excellent choice!
Enhanced Durability:
- Fully adjustable drive system reduces the chance of wire tangling and crushing.
- Brass-to-brass gun connection enhances conductivity.
- Durable cast aluminum gear box delivers added drive torque and quiet operation.
- Easy-turn numeric drive tension indicator identifies optimized ranges for different wire types.
|
|
What's Included:
- (1) Magnum Pro 100L Gun and 10 ft Cable Assembly with Brass Connection and 8-pin Trigger Connector
- (1) .025 in Contact Tip
- (1) .030 in Contact Tip
- (1) .035 in Contact Tip
- (1)Gasless nozzle for Innershield® welding
- (1) Gas nozzle for MIG Welding
- (1) Spindle adapter for 8 in. Diameter Spools
- (1) Shielding Gas Apparatus and Hose
- (1) Work clamp and 10 ft. cable
- (1) Electrode holder with 10ft cable
- (1) 230 Volt to 120 Volt adapter
Specifications:
- Dimensions (H x W x D): 13.6 in x 8.9 in x 18.1 in (345 mm x 224 mm x 460 mm)
- Net Weight: 34.5 lbs (15.6 kg)
- Machines Processes: Stick (SMAW), Flux-Cored (FCAW), TIG (GTAW), MIG (GMAW)
- Output Range by Mode: 30-180A MIG 10-165A DC TIG 25-160A Stick
- Machines Maximum Weldable Thickness: 5/16in.
- Machines Minimum Weldable Thickness: 24ga.
- Input Voltage: 120V or 230V
- Input Current: 20A
- Input Hertz: 60
- Input Power: 120V/230V Single phase
- Input Phase: 1
- Mode Icon: CV
- Output Range: 30-180A MIG, 10-165DC TIG, 25-160A Stick
- Polarity: DC+ MIG and Stick or DC- TIG and FCAW
- Rated Output: 165A/22 V@30% MIG, 165A/16.6V/30% TIG, 160A/26.4V/25% Stick
