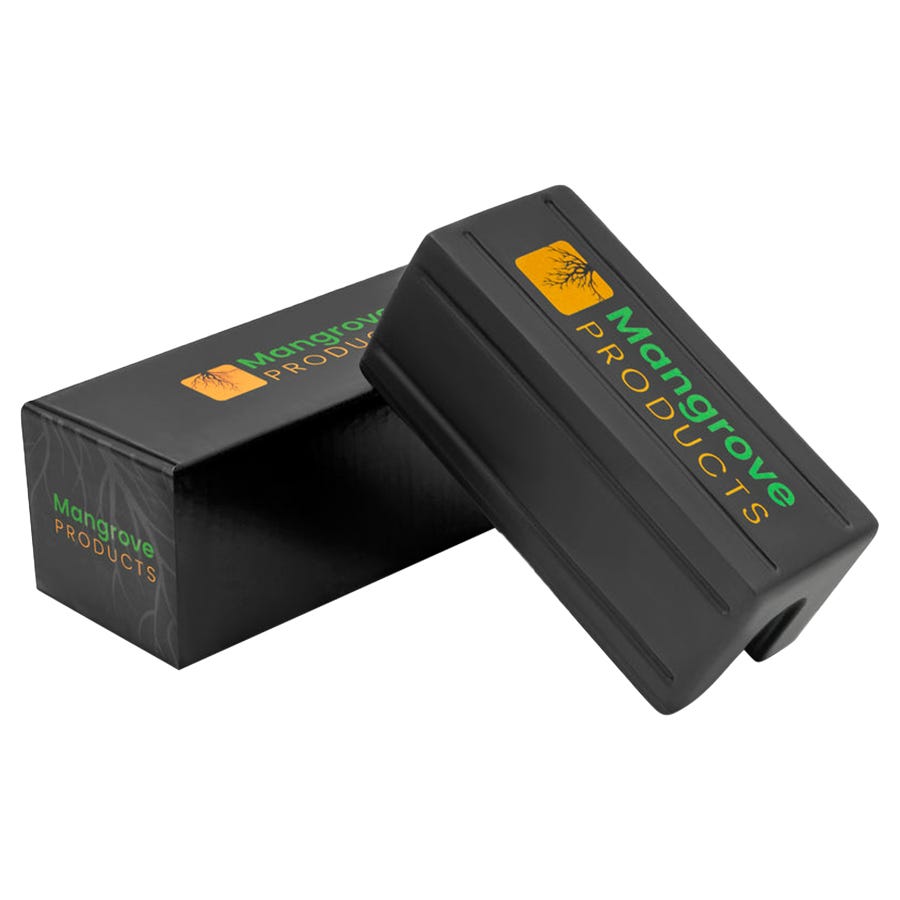

Mangrove Products Transom Saver Single Ram Wedge Outboard Motor Support

Upgraded Material Gen-2: New Pressure rating to over 2000 lb compression with Updated Fitment Guide.

• Ergonomic design superior grip
• Upgraded over 2000 lb compression rating
• High pressure EPDM rubber
• Higher SKEG road travel
• Precision laser cut molding
• Superior Compression Capacity: Less Long-term deformation - faster return to original shape after sustained use
• Your Motor Rides Higher: The product is proven to keep your motor safer and mitigate risk of damage from road and debris
• Motor rode 15" above ground
• Less Compression Capacity: In real-world tests, other brands retained more severe deformities resulting in lower riding height
• Your Motor Rides Lower: Increases probability of damage due to collisions/scrapes with asphalt, debris, rocks or potholes
• 10 locking notches ensure superior attachment

Supports outboard motor brands such as Yamaha, Mercury, Suzuki, Evinrude, Johnson, Honda and Tohatsu. Specific Fitment range for outboards with electric tilt function ranging from 30 hp to 150 hp outboard motors. The intended use is to support the outboard motor when trailering to prevent any unwanted motor travel up and down when trailering, this unwanted movement can put damaging pressure to the tilt and trim unit without using wedge support.

No drilling or special installation to trailer required, no need to bend over or get on your knees. Eliminate metal to skeg scrapping compared to metal transom savers. Simply tilt engine up, insert high pressure wedge into Tilt Ram piston, then tilt down and you are on your way. No metal, no worries of rust or corrosion and is safe to use in both salt and freshwater applications. No need for straps, rope, bungies, skeg support or brackets. All you need is the high pressure wedge.

High Density EPDM rubber wedge trail tested and constructed better by Mangrove Products. Compression testing over 2000 lb of pressure, extended wedge length to aid in higher skeg ride height, withstand extreme hot/cold temps, 10 inner notches to ensure connection to tilt shaft, colored visual surface and ergonomic design for storage in dry box. High pressure between the wedge and base of engine will not create splitting or damage to the wedge unit.

Make your life easier and more enjoyable by eliminating the worry of potential damage your outboard motor or transom when trailering your boat to your favorite fishing spot with the family, so you can focus on the fun. Creating a barrier to downward force of gravity can positively reduce damage to tilt and trim unit when hitting bumps on roads and highways. The High pressure wedge creates this safe barrier to brace and prevent negative downward force to the tilt/trim unit.

You will note a decrease in upward and downward force of the outboard when hitting bumps in the road so engine can move with trailer springs rather than direct impact to transom and tilt/ trim unit. Upward and downward force/ momentum can put unwanted pressure on your boats transom. Also you will note safe skeg travel in comparison to road height to aid in clearance to avoid damage by hitting road debris or road dips when pulling out of a parking lot.

Yamaha 4-Stroke/2-Stroke: 30hp-200hp, VMAX-SHO 90hp-175hp (1 block) Mercury (ProXS, SeaPro, 4-Stroke, 2-Stroke) 40hp-175hp, Verado (V8+V6) 250hp-400hp (require 2 blocks), Mercury Racing 300R-450R (require 2 blocks) + 60R, Suzuki 40hp-200hp (1 block), Tohatsu 40hp-150hp (1 block), Honda 40hp-150hp (1 block), Evinrude E-Tech (H.O.+ Inline) 25hp-130hp (1 block). Make sure to attach to Single Ram Piston. A premium product for your premium engine. A boat accessory that will last.

• Trim outboard motor to up position
• Insert support onto power tilt rod until it clicks into place
• Trim outboard motor down until support has tension
