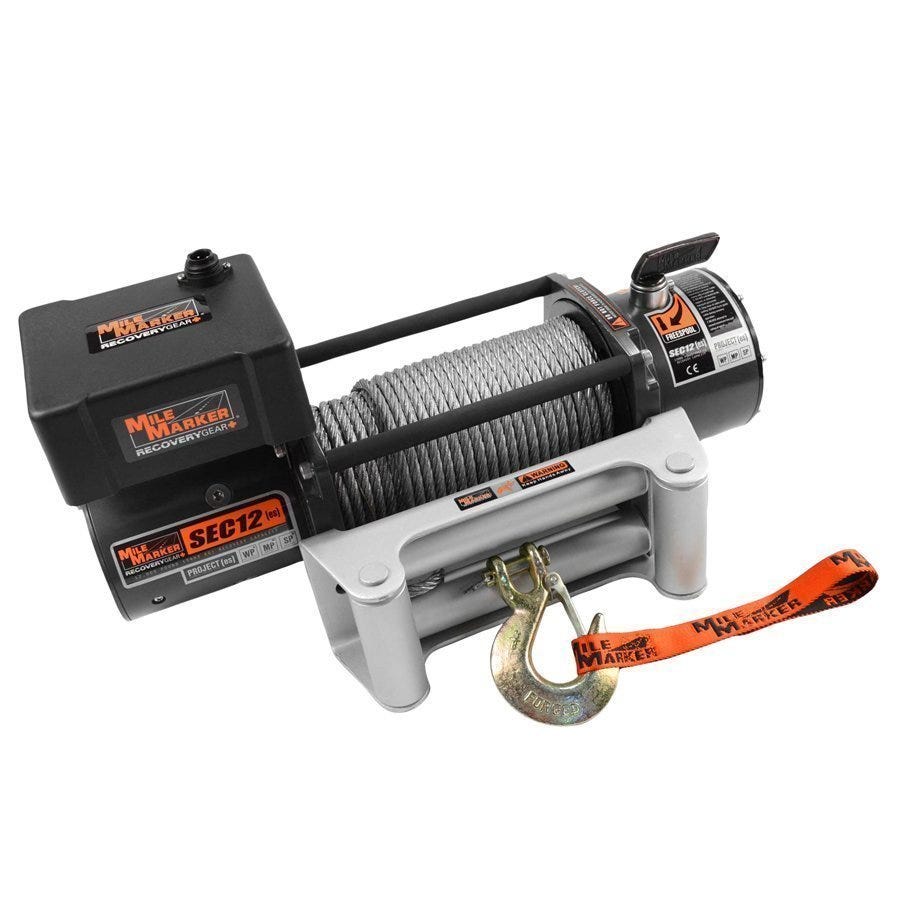

Mile Marker Waterproof Electric Winch - 12 V - 12,000 lb

Heavy Duty Series Wound Motors and rugged planetary gear sets are the backbone of this expedition grade winch series. Featuring 19 seals throughout the assembly to keep any and all contaminants outside of the unit. The totally redesigned exterior features NO CHROME construction: stainless hardware, black zinc clutch handles, and anodized aluminum tie bars. Each roller fairlead is now coated with Dacromet, a world-class metal coating known for its anti-corrosion properties. Mile Marker has also implemented a new submersible solenoid design with marine-grade connections at the Remote Control plug and socket.Mile Marker’s all new Project ES (Element Sealed) winches feature best in class line speeds, corrosion proof construction, submersible solenoids with marine-grade connections, and have 19 watertight seals to conquer every element imaginable. Other winches claim "waterproof" or "sealed," but Mile Marker’s Project ES winches were independently lab certified to the IP68 standard to be impermeable to liquid and dust. Mile Marker has a full line of the Project ES Winches ranging from 2,500 pounds to 15,000 pounds

• Fully Sealed Winches
• Fast Line Speeds
• Series Wound Motors
• Multi-Mount Solenoid
• Clockable Gear Housing
• Load Holding Brake
• Marine Grade Remoten Control Connectors
• Corrosion-Free Construction
• Submersible: 500 Amp Solenoid
• Rated line pull: 12,000 lb
• Gear Train: 3 Stage Planetary
• Gear Ratio: 296:1
• Motor Series Wound: 4.8 hp
• Control Pendant: Power In'
• Power Out Remote: 12'
• Length: 22.25"
• width: 6.25"
• Height: 8.00"
• Cable: 3/8" X 100'
• Drum Size 2.5" X 9"
• Bolt Pattern 4 Bolt Pattern: 4.5" X 10"
