NRS Swivel and Plates for Padded Raft Seats - 8.25" - 9.25"
Sku
2599187
Item#:
94038.01.100
$59.95
- Aluminum plates
- Universal seat mount
- Mounting hardware
- Swivel base
Find In Store
The NRS Swivel and Plates you can turn any NRS Padded Raft Seat into a swivel seat! Bolt the plates to your seat, then bolt the swivel base to your seat bar or the Universal Seat Mount.

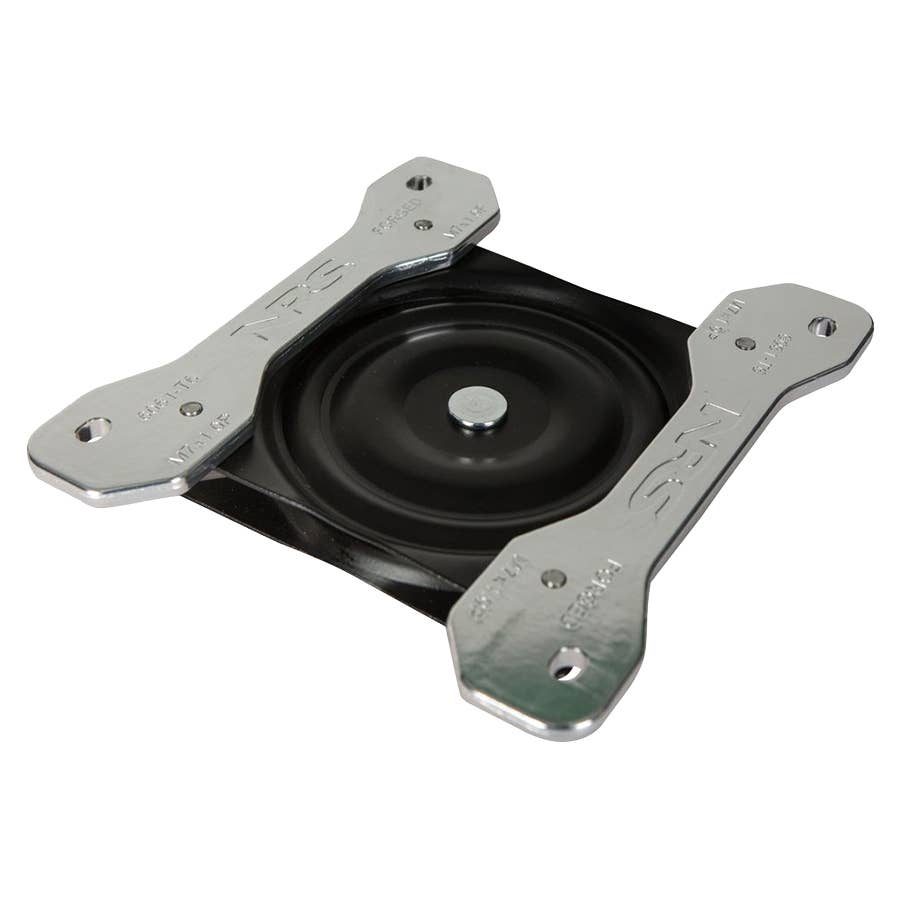

- The unit consists of a swivel base that allows the seat to rotate 360 degrees and two hot-forged aluminum plates that are bolted to it
- The two aluminum plates have holes in the 7" x 7.5" bolt pattern for the NRS Low-Back and High-Back Seats. Use the bolts you have with your seat to attach it to the aluminum plates
- All seat plates on NRS Seat Bars and Angler Seat Bars made in the last several years will have bolt holes in the 5.25" x 5.25" pattern for the swivel
- If you have an older seat bar that doesn't have those holes, just drill four 1/4" holes in that 5.25" x 5.25" pattern
- The unit comes with mounting hardware: 4 each 1/4"-20 x 1" bolts and lock nuts and 8 flat washers
- The Universal Seat Mount, has both the 7" x 7.5" and 5.25" x 5.25" hole patterns. It can be used for mounting your swivel seat anywhere on the 1-5/8" frame pipe
- Weight: 3.125 lb
- Seat Plate Measurements: 8.25" x 9.25"
- Swivel Plate Measurements: 6.25" x 6.25"
- Seat Plate Bolt Hole Pattern: 7" x 7.5"
- Swivel Plate Bolt Hole Pattern: 5.25" x 5.25"
