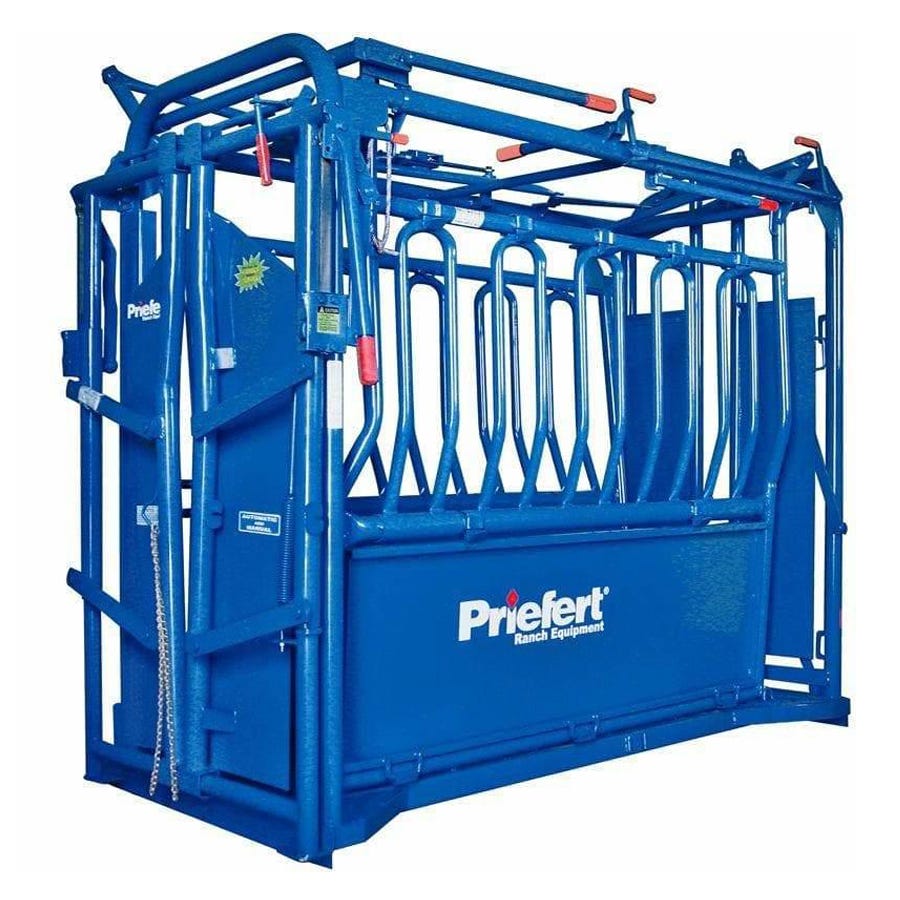

Priefert Squeeze Chute - Model S04

Priefert number one selling squeeze chute of all time, the S04 heavy duty squeeze chute helps take the "work" out of working cattle. Designed to be "Easy on the Cow, Easy on the Cowboy", this chute offers a number of features that make it one of the safest chutes on the market for animals and operators. With patented "Infinite Locking System", cattle are always controlled by the lock, rather than by the strength of the operator. Never before has a manual squeeze chute been so easy to operate. A single individual can control the tailgate, head gate, squeeze and side exit from one spot with minimal effort. This chute is contoured to fit cattle and the head gate self-adjusts to the correct locking width to fit any size animal. This, coupled with the "floating floor" adjustment and the split tailgate, makes this chute ideal for working cattle of all sizes. With multiple access points, the S04 gives you total control of your herd for all your cattle working needs.

• Designed to be user friendly, all levers and handles are located so that a single individual can operate the head gate, tailgate, squeeze and side exit from one spot with minimal effort
• Headgate locks and Side Squeeze locks are GUARANTEED FOR LIFE. This infinite locking system allows a perfect fit for every size animal
• Model 91 Headgate operates in manual or automatic catch mode. To set the automatic catch, move the auto-catch lever to activate the spring and then use the self-catching lever on the front of the head gate to select one of 4 opening widths. The sides of the head gate are contoured to fit securely around the neck of the animal
• Five contoured upper access panels on each side of the chute are controlled by gravity latches and allow maximum access to both sides of the animal
• "Floating Floor" adjustment allows the width of the floor to be adjusted in seconds with the pull of an overhead lever. No more digging through the mud and manure required! When not in use, the adjustment lever is stored over the top of the chute so it is not in the operator's way
• Removable bottom access panels on each side of the chute are controlled by gravity latches and allow easy access to the lower part of the animal, making it easy to check hooves and udders
• The Side Exit gate can be used as a sorting exit or as an emergency exit by simply pulling on the release rope. Once the animal is clear of the chute, use the "easy pull" return lever to close the side gate, returning it to its original locked position without ever moving around the chute. When not in use, the return lever is stored of the top of the chute, held in place with a gravity latch
• The "split tailgate" features dual controls to allow operation of the tail gate from the front or rear of the chute. The simple pull of a pin disengages half of the tailgate to create a "calf-sized" entry into the chute. Put the pin back in place to resume split tailgate action
• This tailgate will lock in the closed position to secure the animal inside the chute. It will also lock in the open position to allow easy access for palpation and artificial insemination
• Head Restraint Chain can easily be secured around an animal's head to provide easy access for doctoring eyes or reading ear tags/tattoos
• No head-banging handles in the way of the operator! All handles are parallel along the side of the chute or store over the chute and out of the way of the operator
• 5 Year limited warranty on workmanship and materials
• This design allows maximum neck access, offering greater convenience for preferred injection sites
• Optional wishbone carriage and carriage receiver for easy transport
• Overhead squeeze lever pulls down parallel to the chute so its not in the operator's way while working cattle. With the squeeze engaged, the lever can be stored above and out of the operator's way by simply sliding the lever up, then twisting and locking the lever into place

Specifications

• Weight: 1210 lb
• Inside Height: 62.5"
• Inside Length: 87"
• Inside Width: 24" at the belly pipe, 30" at the bend of the contoured side panels
• Overall Height: 80"
• Overall Length: 94.5"
• Overall Width: 53"
• Lubricate infinite locks with light oil. do not use heavy oil or any oil with Teflon or silicon additives
• Includes Head Chain (HC)
• Dip painted Priefert blue
