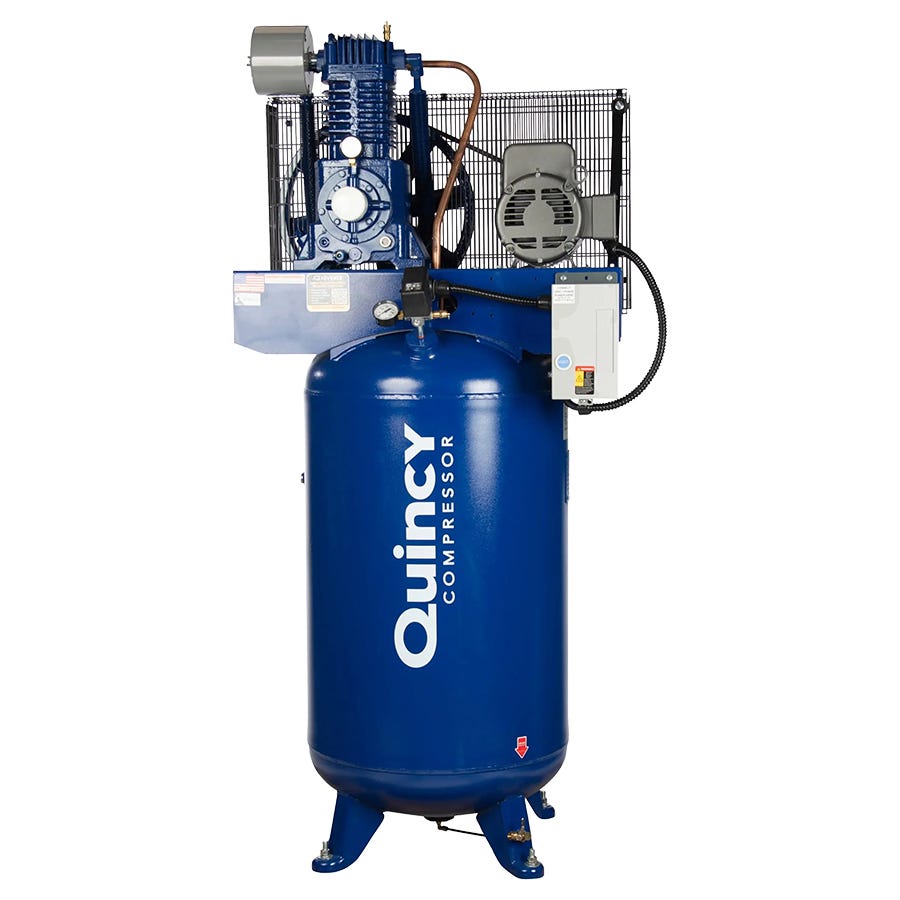

Quincy 451CS80VCB 5HP Two-Stage Vertical Pro Compressor - 80 gal - 75" - 37"
- Automotive-style filter
- High-performance
- Fully pressure lubricated
- Single-source duplex control panels
Find In StoreThis item is only available for curbside and in-store pickup at a North 40 Outfitters store. Please check the store availability tab to view inventory at your preferred North 40 Outfitters.
The Quincy QP series is designed for tougher 175 psi applications where traditional splash lubrication just won’t measure up. The QP is a heavy-duty, cast-iron compressor that features an oil pump for pressure lubrication to the crankshaft, bearings and connecting rod up to the wrist pins. This advanced pressure lubricated system allows for a smoother, more continuous operation. Coupled with an attractive price, the QP balances cost effectiveness with longer life to maximize your investment.
A piston-driven reciprocating air compressor operates via positive displacement. The piston forces air into a cylinder and compresses it into a storage tank.
The Quincy QP Series consists of reciprocating compressors that can handle your most challenging compressed air applications. The "fully-loaded" Max Unit.
- Lubricated two-stage compressor
- High-performance positive displacement oil pump
- Two-piece aluminum connecting rods
- Inter-cooler unit featuring fin and tube construction
- Automotive-style filter
- Electric models include a pressure switch
- Single-source duplex control panels (duplex units only)
- Manual ball valve tank drain
- Enclosed belt guard complies with OSHA standards
- CSA and UL compliant electrical components
- Fully pressure lubricated
- Cast-iron crankcase, cylinder and flywheel
- High efficiency intercooler
- Positive displacement oil pump
- 5 HP, 175 psi maximum
- Two Stage
- Oil filter and pressure gauge
- Automotive style inlet filter/silencer
- HP: 5
- Phase: Single Phase
- Voltage: 230V
- Tank: Vertical
- Tank Size: 80 gal
- ACFM: 17.2 cfm @175 psi
- Recip Pump RPM: 658
- Pressure Lubricated Model: QP-5
- Length: 35"
- Width: 28"
- Height: 77"
