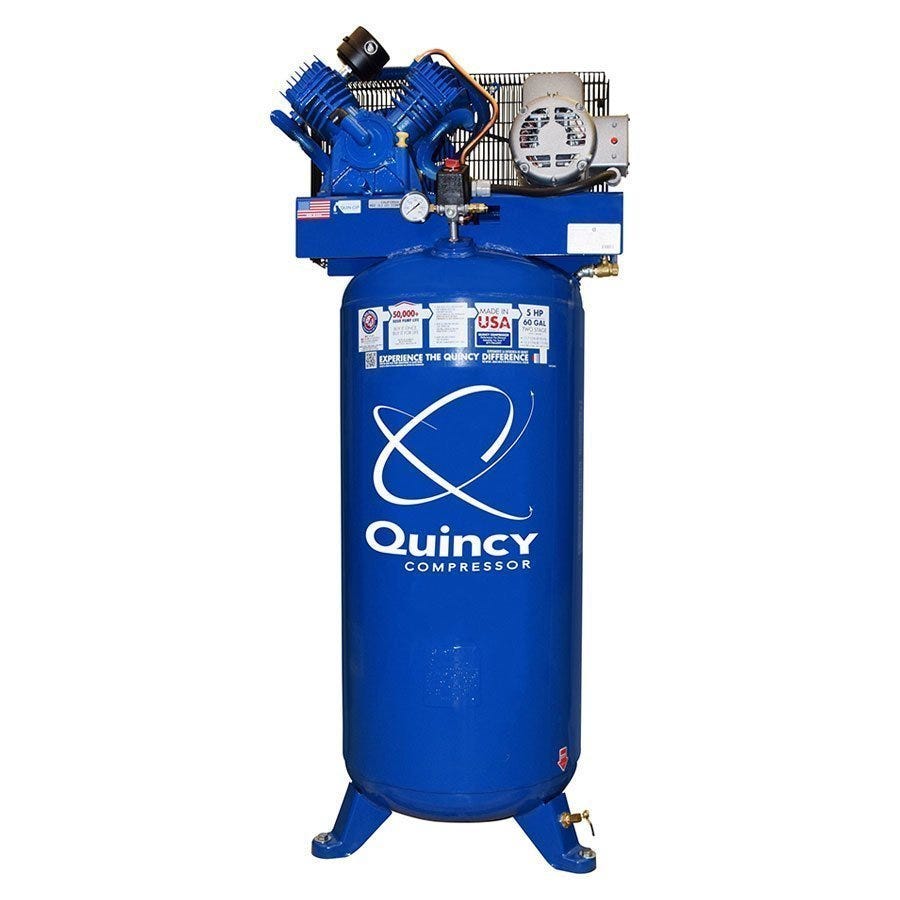

Quincy 2V41C60VC QT-54 5HP Two-Stage Vertical Air Compressor - 60 gal

The Quincy QT-54 (2V41C60VC) is a 5 HP, two-stage reciprocating air compressor on a 60-gallon vertical tank, built for shops and commercial sites that need dependable compressed air. The four-cylinder, splash-lubricated pump produces more air at lower horsepower and runs cooler at a slower RPM.

Features

• Four-cylinder cast iron QT-54 pump is rated for 50,000 hours of pump life.
• Two-stage, splash-lubricated design is rated for a 100% duty cycle.
• Aluminum head adds strength and dissipates heat.
• Stainless steel reed valves resist corrosion and provide controlled lift for maximum efficiency.
• Industrial-class bearings extend piston life.
• Graphite gaskets provide positive sealing and consistent performance.
• High-efficiency finned tube intercooler reduces heat and extends valve life.
• Angled cast iron flywheel keeps the compressor cooling evenly.
• Vertical 60-gallon tank saves floor space.
• Built in the USA.

Specifications

• model: 2v41c60vc
• series: qt-54
• horsepower: 5 hp
• voltage: 230v single phase
• full load current: 24 amps
• air delivery: 15.2 cfm at 175 psi
• air delivery at 100 psi: 15.4 cfm
• maximum pressure: 175 psi continuous
• stages: 2
• cylinders: 4
• lubrication: splash
• pump speed range: 550 to 1420 rpm
• tank: 60 gal vertical
• tank pressure rating: 200 psi
• pump: qt-54 cast iron with aluminum head
• pump life: 50,000 hours
• duty cycle: 100%
• drive: belt
• air outlet: 1/2 in ball valve
• width: 23 in
• height: 70 in
• weight: 350 lb
• sound level: 80 dba plus or minus 3
• operating temperature: 0 to 104 degrees f
• warranty: 1 year (extendable to 2 years on the package and 3 years on the pump with the EWK-2 kit)

Installation

• The unit ships without a magnetic starter or power cord and must be hard-wired to a 230V single-phase supply.
• Installation by a qualified technician or electrician is required.
