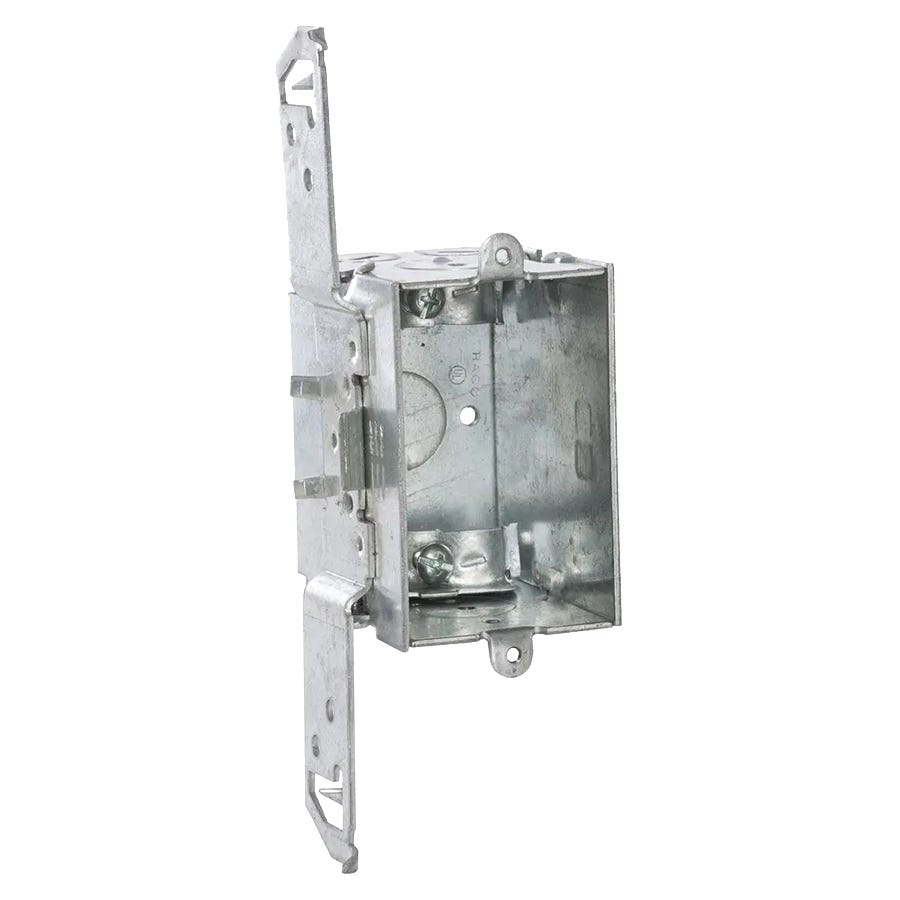

RACO Metal Switch Box - w/Bracket - 3" - 2"
Sku
1136492
$6.99
- Acceptable for use in 2 hrs fire rated walls
- Includes "TS" side-mount bracket with gauging tabs
- L clamps provided for non-metallic sheathed cable
Find In Store- 3" x 2", 2-1/2" deep
- Gangable switch boxes offer the option of constructing a box to hold two or more devices
- Includes "TS" side-mount bracket with gauging tabs and recessed nailing spurs
- L clamps provided for non-metallic sheathed cable (NMSC)
- Supplied with three 1/2" knockouts
- Acceptable for use in 2 hrs fire rated walls
- Bracket Setback: 0.50
- Bracket Type: TS, for Metal or Wood Studs
- Color: Gray
- Ends Cable: 4
- Fire Resistance: Yes
- Gangable: Yes
- Knockouts: 1/2"
- Material: Steel
- Number of Gang(s): 1-Gang
- Plaster Ears: No
- Type: Switch Box
- Wiring System: Nonmetallic Sheathed Cable
- Actual Depth: 2.749"
- Cubic Capacity: 12.5 cu. in.
- Depth: 2.5"
- Height: 7.003"
- Weight: 0.66 lb
- Width: 2.632"
- Power Distribution: Fire Rated
- Certified Listed: UL Listed
- RACO Switch boxes are used to house wiring devices such as switches and outlets
