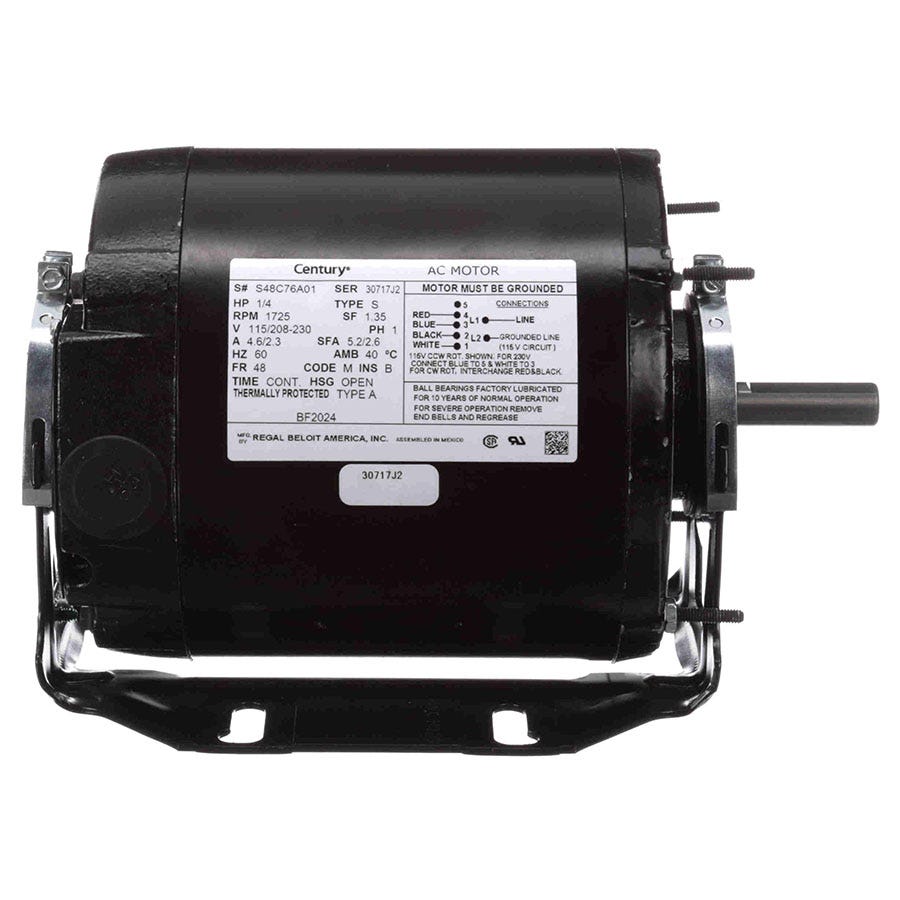

Regal Electric Motor - 1/4Hp Blower

Sku
2599493
Item#:
BF2024
$279.97

  • Thermal protector
  • MAXGuard insulation
  • Double-sealed bearings
  • Variable frequency drive
Quantity 1
  • Automatic reset thermal protector prevents overheating
  • Patented MAXGuard insulation system offers superior protection for use with a variable frequency drive
  • Permanently lubricated, double-sealed bearings extend the lifetime of the motor
  • Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications
  • Vertical/horizontal mounting for proper placement of the fan within airflow
Specifications:
  • Phase: 1
  • Output KW: 0.25 kw
  • Speed: 1725 rpm
  • Frame: 48 None
  • Thermal Protection: Automatic
  • Frequency: 60 Hz
  • Duty: Continuous
  • UL: Recognized
  • CE: N
  • Output HP: 1/3 Hp
  • Voltage: 115/208-230 V
  • Service Factor: 1.35
  • Enclosure: Open Enclosed
  • Ambient Temperature: 40 °C
  • Current: 4.6/2.3 A
  • Insulation Class: B
  • CSA: Y
  • Number of Speeds: 1
  • Weight: 14.00 lb
  • Country of Origin: Mexico
Technical Specifications
  • Electrical Type: Split Phase
  • Poles: 4
  • Mounting: Resilient Base
  • Opp Drive End Bearing: Ball
  • Shaft Type: Keyed
  • Frame Length: 5.94"
  • Shaft Extension: 1.62"
  • Starting Method: Across The Line
  • Rotation: Reversible
  • Drive End Bearing: Ball
  • Frame Material: Rolled Steel
  • Overall Length: 9.15"
  • Shaft Diameter: 0.625"
