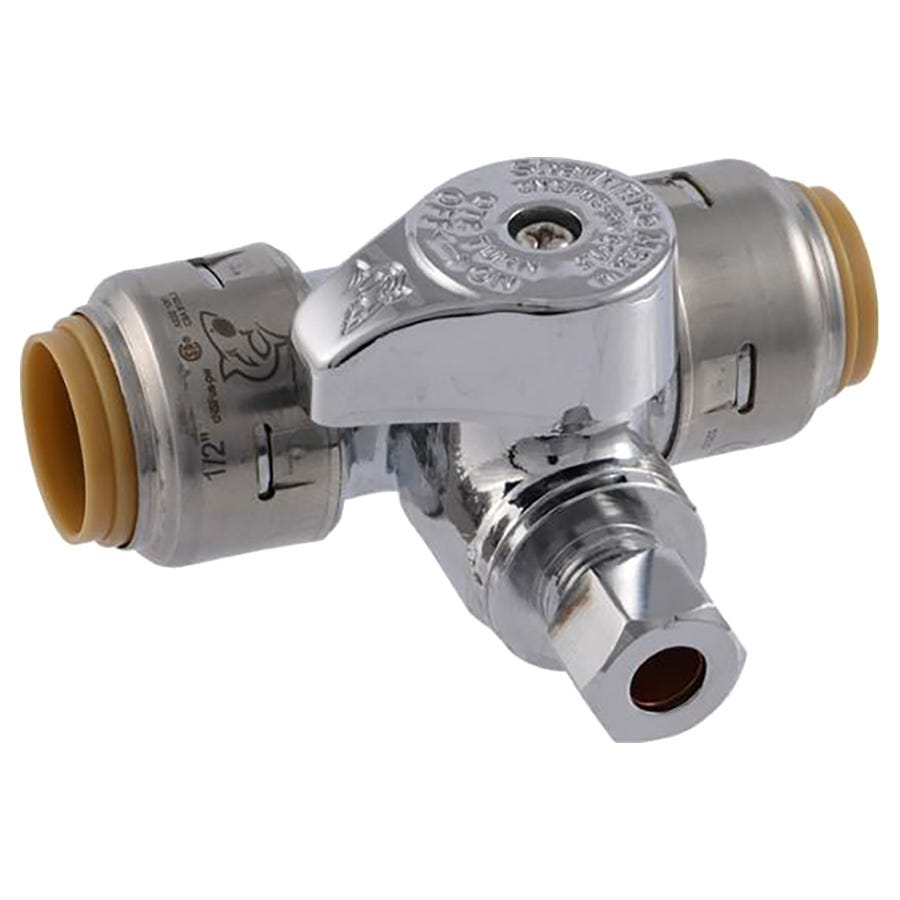

SharkBite Compression Tee Stop Valve

SharkBite Max service stop allows you to add a new line to a fixture by tapping into a 1/2 or 3/4" pipe. Featuring a quarter-turn full-port brass valve that allows for easy on/off control of the supply line. Innovative push-to-connect design makes for quick and easy installation. Ideal for working in tight spaces. Faster install time and ease of use reduces installation errors.

• Ideal for adding supply lines to fixtures and appliances such as dishwashers, humidifiers and ice makers
• Sleek chrome finish for an attractive appearance
• Quarter-turn full-port brass ball valve
• Compatible with PEX, copper, CPVC, PE-RT and SDR-9 HDPE pipe
• No special tools, crimping, glue or soldering is needed
• Can be installed in wet lines
• Rated to 160°F and 125 psi
• Can be rotated for easier and faster installation
• Ideal for working in tight spaces
• Remove using a disconnect clip or disconnect tongs (both sold separately)
• SharkBite push-to-connect fittings are the fastest when compared to other conventional plumbing methods
• Comparison relates to 1st generation SharkBite push-to-connect products
• Versatile: Connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe in any combination
• Easy to Install: Fittings require half the insertion effort for smoother and faster connections
• Wet or Dry: Can be installed on wet lines and pressure tested immediately

• Material: DZR Brass

• ASME 112.18.1/CSA B125.1
• NSF/ANS/CAN 61: Q≤ 0.5
• NSF/ANSI/CAN 372
