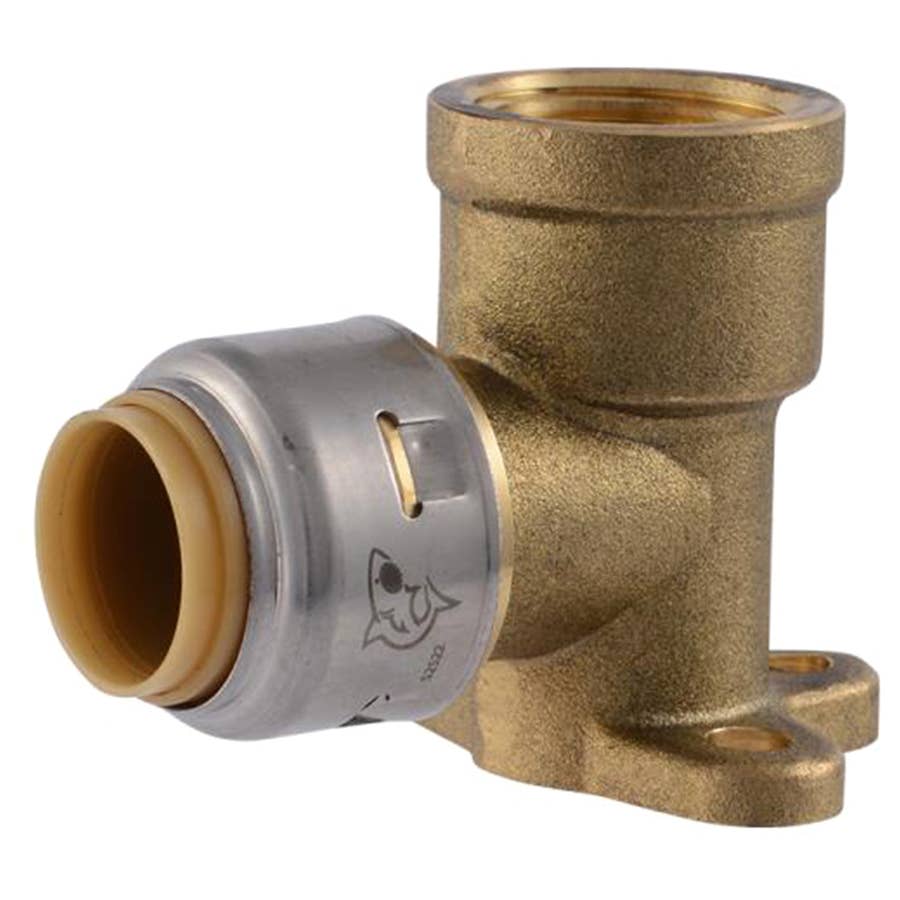

SharkBite Max Brass Drop Ear Elbow - 1/2" FNPT

SharkBite Max drop-ear elbow is designed to make a 90° connection between PEX, copper, CPVC, PE-RT or HDPE SDR-9 and a MNPT threaded connection. Typically used for installing shower arms and tub spouts. Approved for underground and behind-the-wall applications with no access panels.

• Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe
• Half the insertion effort, double the pressure rating
• Can be installed on wet lines and pressure tested immediately
• Stainless steel retainer adds strength and durability
• High-performance DZR lead-free brass body
• No special tools, crimping, soldering or glue required
• Can be rotated after installation
• No tube liner required for PEX
• Rated to 200°F and 400 psi
• Can be easily removed using a disconnect clip, disconnect tongs or pro disconnect tool

• Size: 1/2" FNPT

• ASSE 1061
• CSA B125.3
• NSF/ANSI 14
• NSF/ANSI/CAN 61
• NSF/ANSI/CAN 372
• ASTM E84
• CAN/ULC S102.2
• UL 263
• ASTM E119
• CAN/ULC S102

• 25 Years warranty when properly installed on PEX, copper, CPVC and PE-RT
• 5 Years warranty when properly installed with HDPE SDR-9
