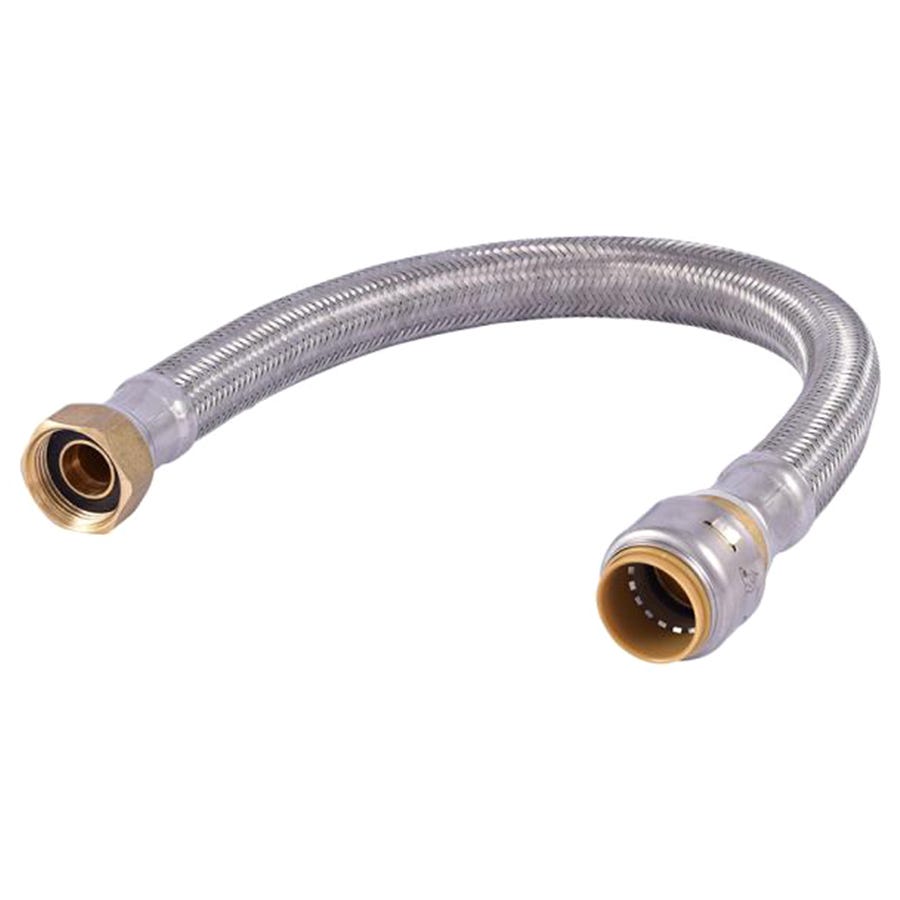

SharkBite Water Heater Connector - 18"

SharkBite Max braided flexible water heater connector allows you to work in tight spaces and easily connect a water heater with existing pipes that don't line up. The braided water heater supply lines are approved for use on electric or gas water heaters with a flue vent. Rely on SharkBite Max innovative push-to-connect water heater hose design to reduce extra joints or fittings, allowing for faster install time.

• Versatile: Connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe in any combination
• Easy to Install: Fittings require half the insertion effort for smoother and faster connections
• 2X Strong: Stainless-steel collar allows fittings to withstand 2X the burst pressure
• Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe
• Half the insertion effort, double the burst pressure
• Can be installed on wet lines and pressure tested immediately
• Stainless steel retainer adds strength and durability
• High-performance DZR lead-free brass body
• No special tools, crimping, soldering or glue required
• Can be rotated after installation
• No tube liner required for PEX
• Rated to 140°F and 200 psi
• 25 Years warranty when properly installed on PEX, copper, CPVC and PE-RT
• 5 Years warranty when properly installed with HDPE SDR-9
• Can be easily removed using a disconnect clip, disconnect tongs or pro disconnect tool
• SharkBite push-to-connect fittings are the fastest when compared to other conventual plumbing methods

Specifications

• Length: 18"
• Pipe Size: 3/4" x 3/4"
• Material: Stainless Steel

Applications

• Water heater installation
• Gas water heater installation
• Tankless water heater installation

Approvals

• ASME A112.18.6/CSA B125.6
• NSF/ANSI 14
• NSF/ANSI/CAN 61
• NSF/ANSI/CAN 372
