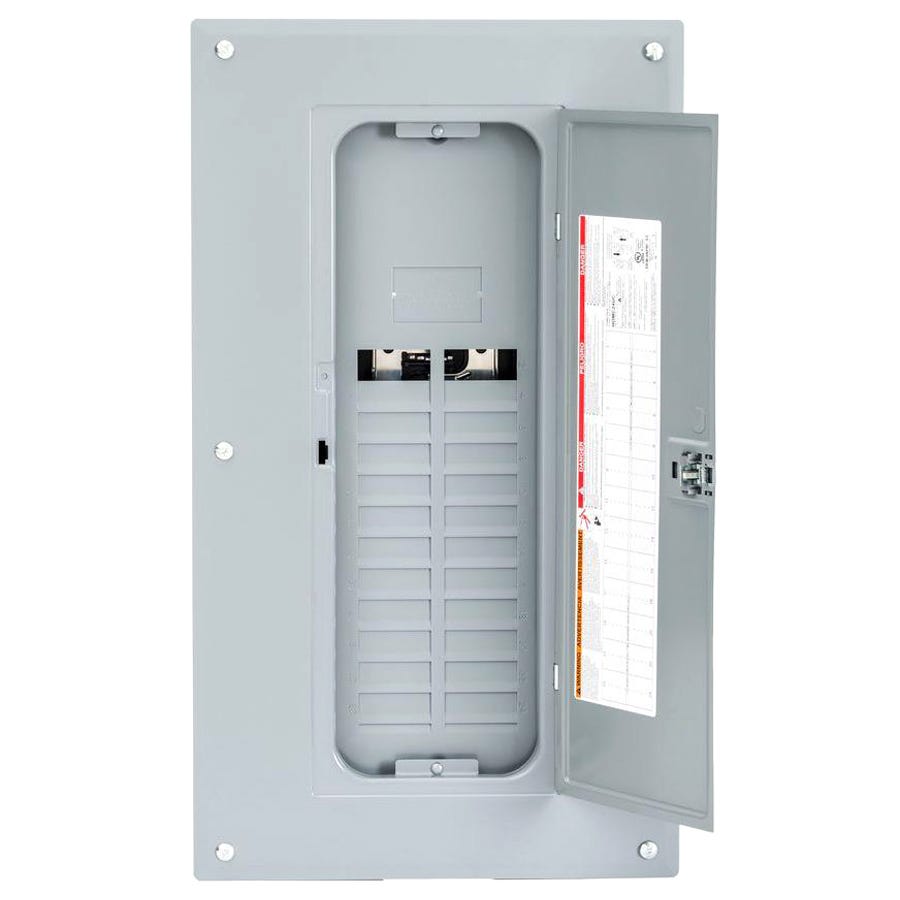

Square D Plug-on Neutral Load Center with cover for Plug-on Neutral breakers is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings.
- Less wiring, clean gutter, fast installation with Plug-On Neutral
- Compatible with any Square D Homeline circuit breaker
- Cover and aluminum bus bar included
- Each pole space accepts full-size, tandem or quad breakers
- Ground and neutral bars accept up to (3) #10-14 equipment grounds
- Overhead/underground feed simply by rotating the device before installing
- Single phase
- Rated 120/240 VAC and 65,000 AIR short circuit current rating
- Automatic flush adjusting cover requires less time to complete the job
- Designed with straight-in mains to save expensive cable and time
- Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
- Easily removed with a single captive screw
- 3 ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
- HOM2040M100PC: 20 Space 40-Circuit Indoor Main Breaker
- HOM2040L125PC: 20 Space 40-Circuit Indoor Main Lug
