Star Water Systems Deepwell Ejector (3/4 hp)
- Dual voltage operation (115/230 V)
- 2-pipe jet pump configuration
- Supports 20–40 ft lift at 1/3 hp and 20–90 ft at 3/4 hp

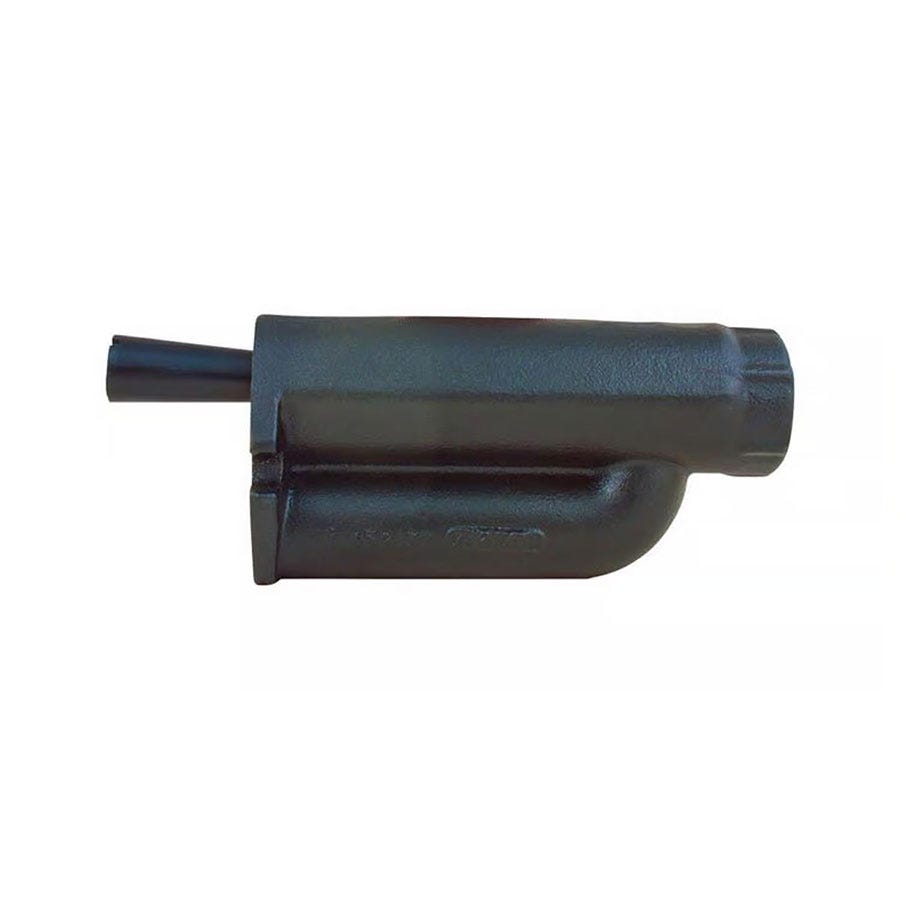

Find In StoreFlint & Walling DW40E-1726 dual voltage 2-pipe jet ejector assembly
The Flint & Walling DW40E-1726 jet ejector assembly is built for deep well water systems, delivering dependable performance for lifts up to 90 feet. This model is ideal for use with 3/4 hp Flint & Walling jet pumps, including CPJ07B, CPH07, and CPH07R models. Made from durable cast iron, it’s designed for wells with a minimum 4-inch casing and is suitable for both residential and agricultural applications.
Key features:
-
Dual voltage operation (115/230 V)
-
2-pipe jet pump configuration
-
Supports 20–40 ft lift at 1/3 hp and 20–90 ft at 3/4 hp
-
Compatible with CPJ07B, CPH07, and CPH07R jet pumps
-
Cast iron construction for durability
-
Includes gasket, nozzle, venturi, and bolts for installation
-
Pressure switch factory preset to discharge chart specs
-
Requires minimum 4-inch well casing for deep well applications
A dependable solution for water delivery in deep well installations requiring medium to high lift capacity.
