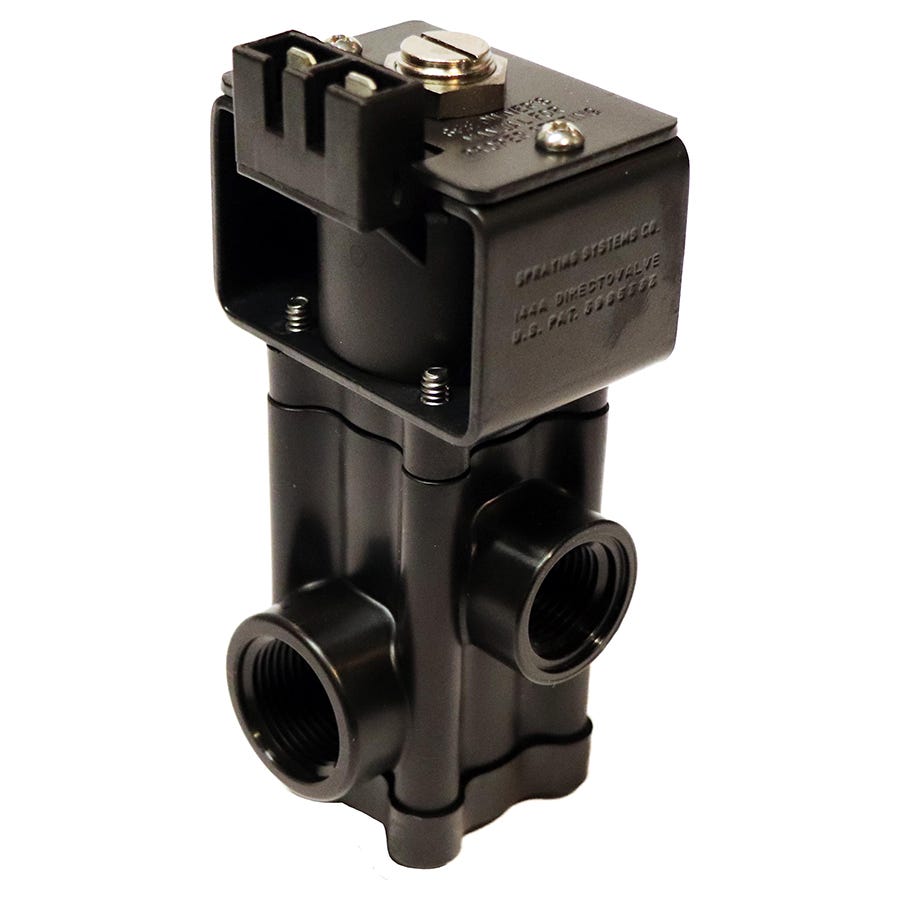

TeeJet DirectoValve 144A Solenoid Valve - Bank of 1 - 3/4" By-Pass
Sku
2142899
Item#:
5143319
$159.99
- Direct acting
- Stainless steel wetted parts
- Polypropylene body
- Continuous flow through bypass connection
Find In Store
- Direct acting; large internal flow chamber without pilot hole reduces chance of clogging
- Stainless steel wetted parts provide additional corrosion resistance
- Operate on 12 VDC system
- Maximum pressure of 100 psi (7 bar)
- Encapsulated solenoid coil can be changed without removing valve from system
- EPDM diaphragms and seat washers, Viton optional
- Continuous flow through bypass connection, with flow to spray line controlled by valve "on-off" action
- Can be ganged with other 144A DirectoValve control valves
- Polypropylene body for chemical resistance
- Fabric reinforced diaphragms
- Flow Rate: 10 GPM (38 l/min) at 5 psi (0.34 bar) pressure drop, 14 GPM (53 l/min) at 10 psi (0.69 bar) pressure drop
- Current Draw: 2.5 Amp
- Inlet Size: 3/4"
- Outlet Size: 1/2"
