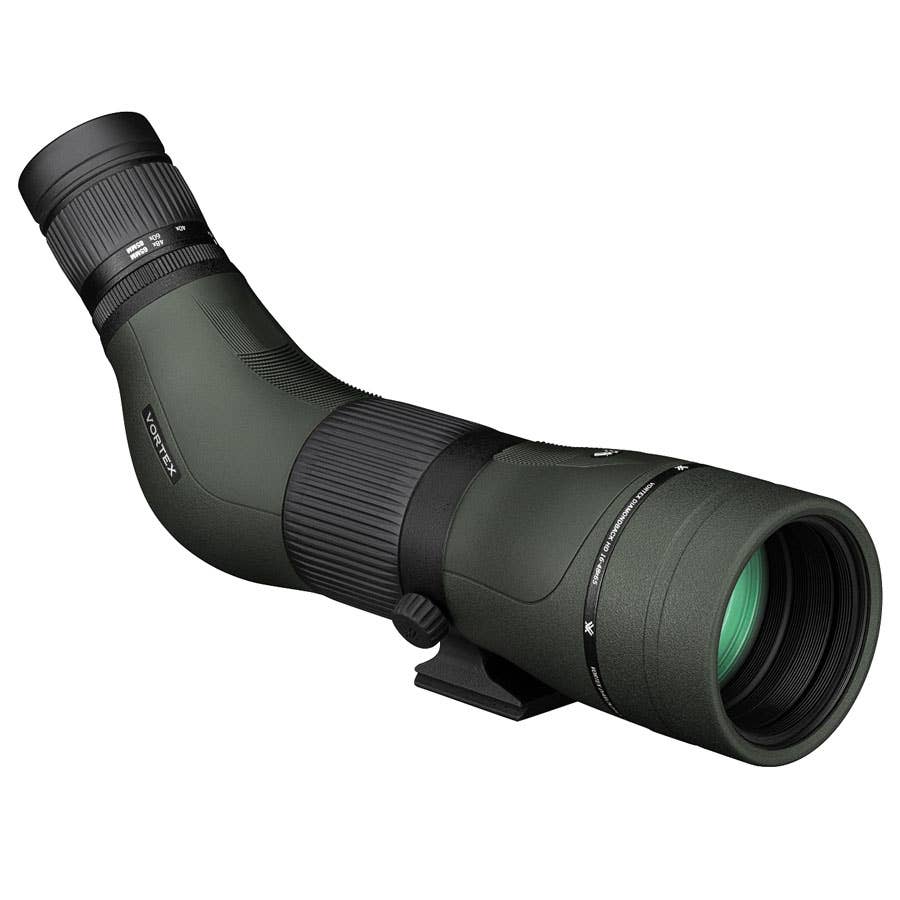

Vortex Diamonback® HD 16-48 x 65 Angled Spotting Scope

Sku
2054945
Item#:
DS-65A
$399.99

  • HD lens elements
  • Rubber armor
  • Rotating tripod ring
  • Built-in sunshade
Quantity 1
Glassing out west demands an HD optic, but other systems can't get you the clarity you need to see a tail twitch in low light, or pick a tine out of dense cover. The redesigned Diamondback HD spotting scopes have all the horsepower the long-distance hunter needs and they excel in low light right when you need it most. Have also streamlined the exterior for a sleeker, snag-free profile, building in a helical focus wheel.

Optical Features
  • HD Optical System: Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission
  • Fully Multi-Coated: Increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces
Construction Features
  • ArmorTek: Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt
  • Waterproof: O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments
  • Shockproof: Rugged construction withstands recoil and impact
  • Fogproof: Argon gas purging prevents internal fogging over a wide range of temperatures
  • Rubber Armor: Provides a secure, non-slip grip and durable external protection
Convenience Features
  • Adjustable Eyecups: Twist up and down for comfortable viewing with or without eyeglasses
  • Helical Focus: Allows for fast and fine adjustments
  • Arca-Swiss Compatible: Directly mounts to Arca-Swiss tripod heads without the use of additional plates. Also accepts 1/4-20 threads for use on alternate style tripod heads
  • Tripod Adaptable: Allowing use on a tripod or car window mount. Tripod adapter required
  • Rotating Tripod Ring: Allows rotation of the eyepiece to a sideways position, providing adjustable viewing angles
  • Built-in Sunshade: Reduces glare and shields the objective lens from raindrops and snow
Specifications
  • Magnification: 16-48x
  • Objective Lens Diameter: 65mm
  • Eye Relief: 3.4"
  • Linear Field of View: 138-72'/1000 yd
  • Angular Field of View: 2.6-1.4°
  • Close Focus: 16.4'
  • Eye Relief: 20.3-18.3mm
  • Exit Pupil: 4.0-1.35mm
  • Warranty: Lifetime Warranty
Included In The Box
  • Neoprene cover
  • Tethered objective lens cap
  • Tethered ocular lens cap
  • Lens cloth
Scope Body Type Length Weight
Angled 14.25" 49.8 oz
Straight 13.75" 50.4 oz
