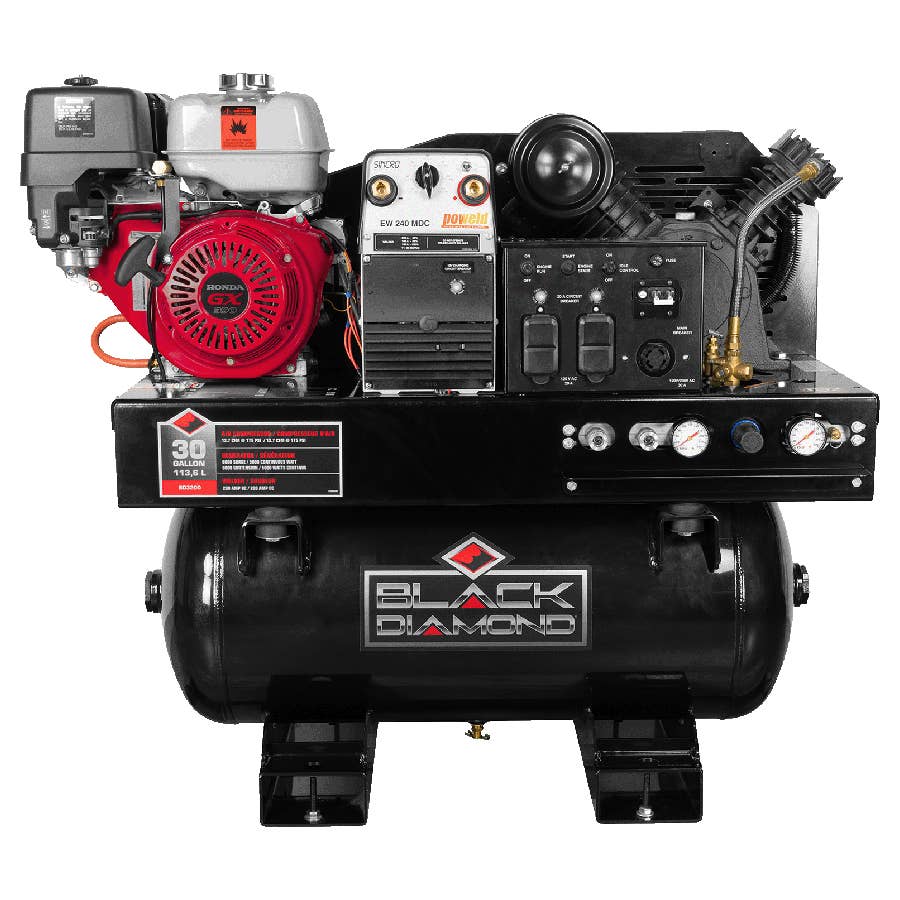

Black Diamond 3 in 1 Air Compressor/Generator/Welder with Gas Engine - 30 gal
- Cast iron construction
- Splash lube
- Heavy duty two stage industrial cast iron pump
- Large easy view oil level sight glass
Find In StoreThis item is only available for curbside and in-store pickup at a North 40 Outfitters store. Please check the store availability tab to view inventory at your preferred North 40 Outfitters.
The Black Diamond 3 in 1 air compressor, generator, welder is designed for farm, ranch, jobsite, field & service truck needs where electrical power is not available. This 3 in 1 truck mount can be used as a compressor, a generator or a welder and features.
- A two stage industrial cast iron pump delivering 14 cfm of air flow at 90 psi to drive a wide variety of air tools
- A 5,000 continuous watt generator conveniently located providing both 120V and 230V AC power to operate lights & electric tools
- An easy access DC stick welder with a large selector knob for key amperage settings and 200 amps of power in order to weld up to 1/2" thick steel
All of this is powered by a dependable 13 HP GX390 Honda gas engine with overhead valve design and precision camshaft that offers precise valve timing and optimal valve overlap for better fuel efficiency and optimal power transfer; includes automatic low oil shutdown. A metal belt guard covers and protects all moving parts. 100% full synthetic non-detergent air compressor oil in the pump.
- Heavy duty two stage industrial cast iron pump
- Cast iron construction for durability, dependability and smooth operation
- Splash lube for complete lubrication of all working parts
- Large easy view oil level sight glass eliminates guesswork on oil levels
- A 5,000 continuous running watt generator
- With a rated 6,000 surge/start up watts
- Four 120V outlets and one 230V outlet with protective covers
- The 200 amp stick welder can weld up to 1/2" thick steel
- Duty Cycle: 150A @ 100% DC, 180A @ 65% DC, 200A @ 50% DC
- Includes a powerful, reliable 13 HP Honda GX390 gas engine with 6.4 qt fuel tank
- 16.5 cast iron balanced flywheel
- 30 gal ASME horizontal truck mount tank includes vibration isolators for installation
- Includes liquid filled tank pressure gauge which provides a more accurate reading
- This unit offers additional features such as low oil level shut off protection for the engine and a thermostatically protected alternator
- Tank Size: 30 gal ASME (American Society of Mechanical Engineers)
- Maximum Working Pressure: 175 psi
- SCFM @ 90 psi: 14.0
- SCFM @ 175 psi: 13.7
- Quick Couplers: (2) 3/8" Automotive Series
- Gas Engine: Honda 390cc GX390
- Running HP: 13.0/390cc
- Generator: 5000 Continuous Watts/6000 Surge Watts
- Generator Outlets: (2) 120V AC 20 Amp Duplex and (1) 120/230V AC 30 Amp Twist lock
- Welder: 50-200 Amp DC Output
- Gas Engine: EPA & CARB Approved
- Generator: CE Approval
- Welder: CE Approval
- Warranty: 2 Years Limited Warranty
