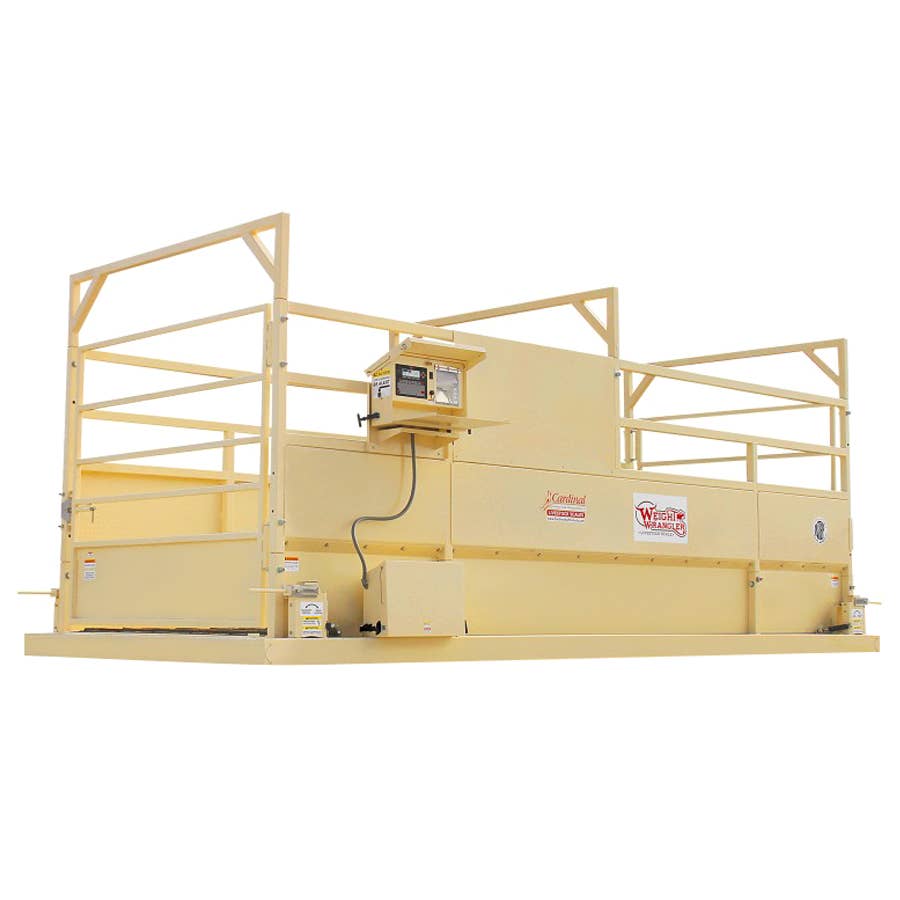

Cardinal Scale Weight Wrangler Portable Livestock Scale

Cardinal Scale Weight Wrangler Portable Livestock Scale provide a self-contained NTEP legal-for-trade weighing system that can be used on any firm surface with up to a 5% grade (maximum allowed by NTEP). The hoof-gripping rubberized component deck and steel cattle pen enclosure with dual swing gates are all suspended at four points within a portable base frame. The scale includes a weight indicator, USB port to store transactions and ticket printer. The mobile weighing center cabinet feature toolbox latches to properly secure the lids and doors.

Capacity:
• Model LSP1513-MWC225P: 15,000 lb x 5 lb
• Model LSP2018-MWC225P: 20,000 lb x 5 lb
• Overall Dimensions:
• Model LSP1513-MWC225P:
• Length: 13'
• Width: 7'4"
• Height: 8'2"
Model LSP2018-MWC225P:
• Length: 18'5"
• Width: 7'4"
• Height: 8'2"
• Includes: 225 weight indicator and CTP-1 ticket printer
• Port: USB for transaction storage on portable USB drive
• Tilt Angle: Up to 5% in any direction (maximum allowed by NTEP)
• Paint: UV-protected, baked-on tan powder paint
• Flooring: High-quality rubberized non-slip composite flooring with predefined floor plank seams in the scale deck prohibit debris from compiling underneath
• Digital Filtering: Stable SENSE digital filtering that filters the weight signal to produce a stable weight display in spite of motion on the scale platform due to animal movement
• Country of Origin: USA
• NTEP Certificate of Conformance: Certificate number 16-042 (legal for trade)
• Accuracy Class: III / IIIL
• Options: Collector Panel Mount Bow (qty. 1), Horse Risers and Dual Latch Gate
• Power Requirements: 12V automotive type battery (battery not included standard)
• Deck Height: 6" when in weigh mode for easy step-in
• Indicator Livestock Functions: Shrink loss, current head count, gross weight, average weight, and previous and total head count, gross weight, and average weight
• Inclinometer: Included with scale and detects scale angle to determine if angle is out of acceptable tolerance for weighing (blanks out if out of NTEP tolerance - up to 5% tilt angle)
• Indicator Display: 240 x 64 pixel monochrome graphics LCD with white LED backlight and visible in direct sunlight
• Keypad: 60 key color-coded keypad with QWERTY keys plus four soft keys and 13 function keys
• Load Cells: NTEP stainless steel model ZX-10000 tension load cells
• Gates: Two swing gates included
• Printer: Cardinal Scale model CTP-1 dot matrix ticket printer included in mobile weigh center for NTEP legal-for-trade ticket printing of transactions
