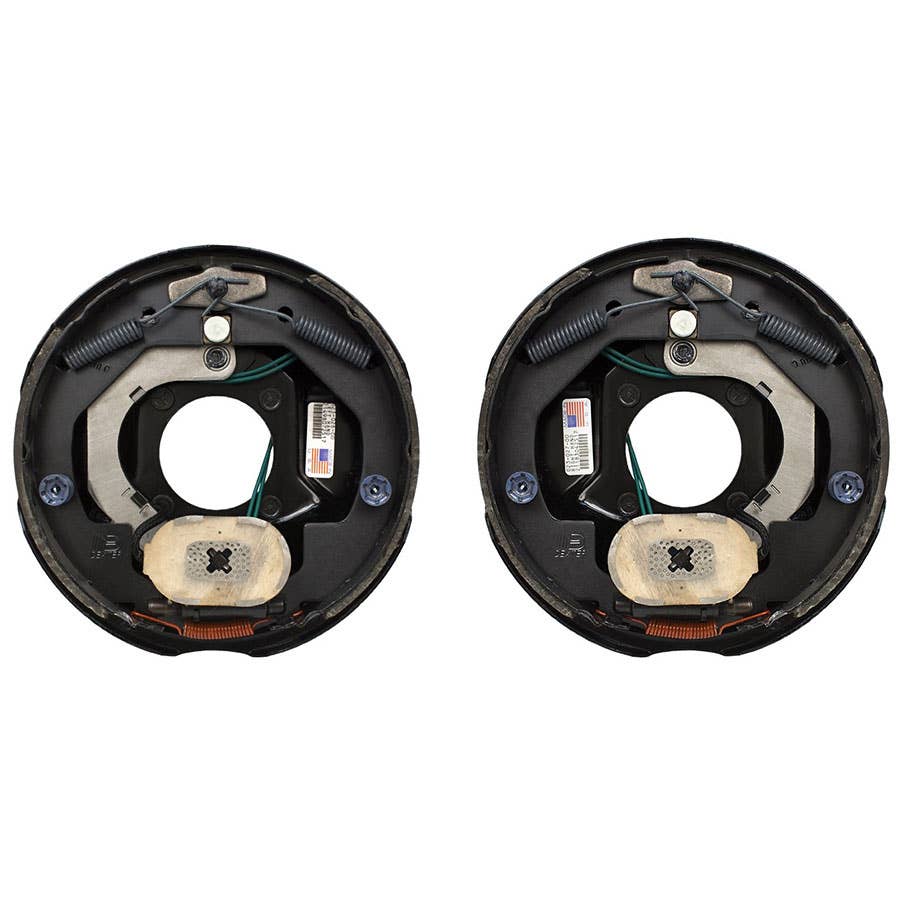

Dexter Electric Trailer Brake Assembly - 10" x 2.25"

Sku
1004099-P

Enter your email to receive a notification when this item becomes available.
Dexter Electric Trailer Brake Assembly are easier to install and offer more user control than hydraulic brakes. Adjuster plugs (included) cover access holes to keep dirt and grime out of the assemblies and off of the shoes. Mounting bolts and hardware included and Made in the USA.
  • Electric brakes are easier to install and offer more user control than hydraulic brakes
  • Adjuster plugs (included) cover access holes to keep dirt and grime out of the assemblies and off of the shoes
  • Mounting bolts and hardware included
  • Made in the USA
  • Application: most standard hub-and-drum assemblies, including Dexter, Lippert (LCI) and AL-KO
  • Dimensions: 10" diameter x 2 1/4" wide
  • Mounting flange bolt pattern: 4 bolt
  • Distance between bolt holes: 2-7/8" apart on center
  • Wheel size: 13", 14" and 15"
  • Axle rating: 3,500 lb
  • Limited 5 yr warranty
