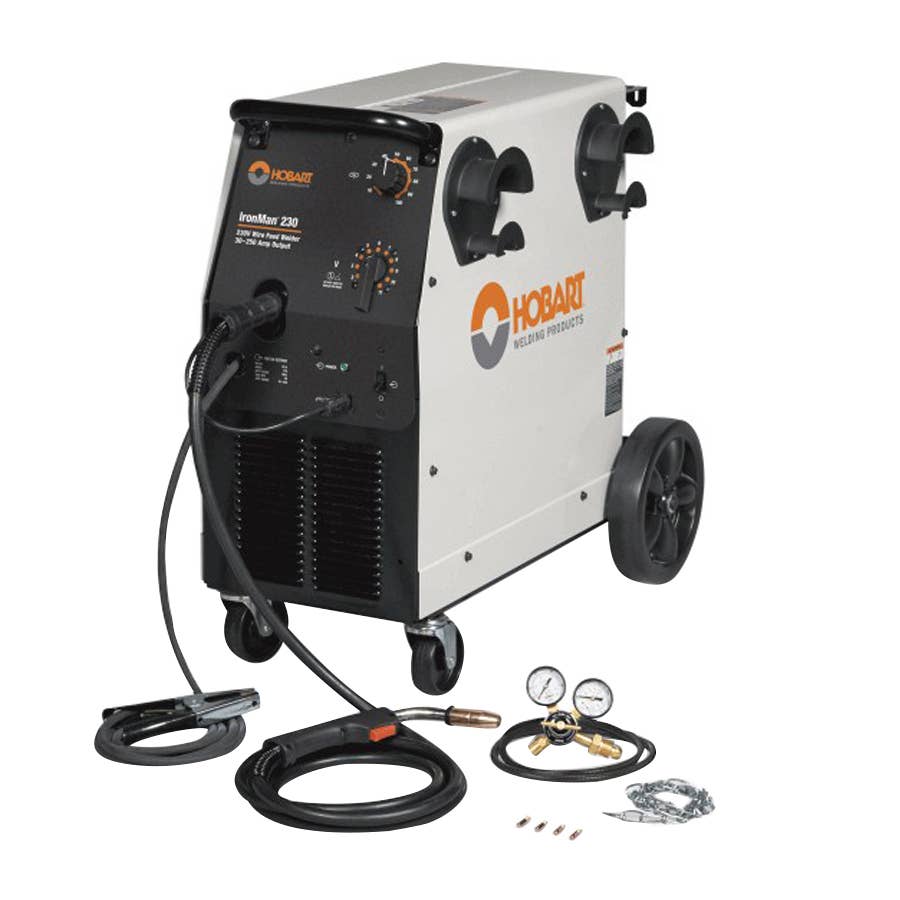

Hobart 500536 Ironman 230 MIG Welder with Wheel Kit & Cylinder Rack
Sku
499142
Item#:
500574
To see product price, add this item to your cart. You can always remove it later.
- Spool gun ready
- Hinged door panel
- Dual side-mounted cable hangers
- Twelve voltage settings with Infinite Wire Feed Speed
This item is only available for curbside and in-store pickup at a North 40 Outfitters store. Please check the store availability tab to view inventory at your preferred North 40 Outfitters.
The IronMan 230 is unmatched in its class. It delivers 30 to 250A of pure power with an arc optimized to deliver a flawless weld, making spatter and post-weld cleanup almost nonexistent. Weld as thin as 24 ga up to 1/2" (13mm) mild steel. The dual-geared wire drive system with aluminum housing delivers 0 to 700 ipm wire feed speed. Reversible drive roll (two grooves for two wire sizes on one drive roll) decreases spare parts and changeover time. Easy to set and adjust for different materials and thicknesses features twelve output voltage settings for finer control, less spatter and cleaner welds.
- Twelve voltage settings with Infinite Wire Feed Speed: Offers easier fine control of the output parameters for improved arc performance with less spatter for a better bead appearance and less clean up
- Spool Gun Ready: Spool guns enhance feedability and reduce "bird-nesting" associated with soft aluminum wires. No additional control box or adapter is required to connect the DP 3545-20 spool gun
- Reversible Drive Roll: 50% less stocking of drive rolls. Standard, one-piece drive roll decreases spare parts and changeover time, reducing overall costs
- Spool Hub Assembly Accommodates 2, 10, 33 and 45 lb Spools: Changing wire spools is a snap with the toolless brake tension knob and automatic wire alignment
- Hinged Door Panel: Provides easy access for spool and drive roll changes, increasing productivity and operator appeal
- Dual Side-Mounted Cable Hangers: Convenient storage for cables when not in use
- Fan-On-Demand: Cooling system operates only when needed reducing power consumption and contaminants drawn into the machine
- Welding Amp Range : 30–250A
- Rated Output: 175A at 25.5VDC 60% Duty Cycle
- Amp Input at Rated Load 200V: 37
- Amp Input at Rated Load 230V: 32.5
- Amp Input at Rated Load KVA: 7.4
- Amp Input at Rated Load KW: 6.3
- Open Circuit Voltage: 38VDC
- Wire Feed Speed Range: 0–700 ipm
- Height: 31.5"
- Width: 18.87"
- Depth: 36.5"
- Weight: 185 lb
- Maintenance/repair
- Auto body
- Construction
- Farm/ranch
- Metal art
- 15' M-25 MIG gun
- 10' work cable with clamp
- Power cord with plug
- Regulator/flow gauge with 5' gas hose
- Dual-groove .030/.035" drive roll
- .030 and .035" contact tips
- Dual side-mounted cable hangers
- Built-in running gear/cylinder rack
